Outdoor Front Service LED Display P3.9, p4, P4.8, P5, P6.67, P8, P10
Front Maintenance
Up to 10000nits
Wide Viewing Angle
Excellent Performance
High Definition
14bits ~ 16bits
3840Hz ~ 7680Hz
High IP Level
The Front Open LED cabinet has a unique and innovative feature: The modules can be spliced into a 90 degree angle seamlessly, without the black line. This feature allows the screen to fit 90 degree shape wall-mounted installation perfectly.
High Brightness The brightness of this outdoor advertising display can be up to 10,000nits. So the display content will still look very clear in direct sunlight. Lower Attenuation The LED screen is still bright enough in the sun after 6 years. Less Power Consumption We have adopted the unique design. This LED cabinet consumes 30% less power than the other similar products in the market.
Designed for outdoor advertising, our Front service series has been proved to be a very successful front access LED screen. To make the LED display stable and reliable, we have carefully selected high-quality materials. The pixel pitches are SMD LED module: P3.9, P4.8, P4, P5, P6.1, P6.67, P8, P10 DIP LED module: P10, P16, P20
This outdoor LED cabinet can be designed to be no door, no fan and no ventilation. Therefore, the protective grade is higher than IP65. That’s to say, the LED display can function well in dusty roadside and seashore.

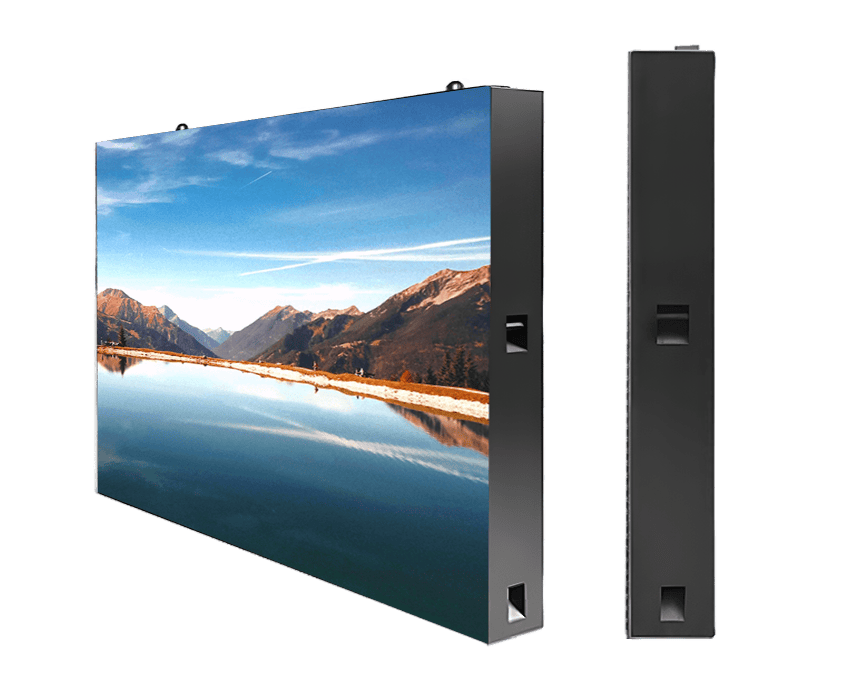

With fully front access design, all components, such as power box, receiving card and other accessories, can be removed in the front of the LED cabinets. 103mm Thickness and Neat Back The LED screen panel can be very thin and its back is neat, so it can be directly mounted on the wall. You don’t need to leave any space in the back.
We use high-quality plastic mask on the LED modules, which makes the LED screen very flat. Thus, the viewing angle is wider than that of other LED products. Moreover, the LED display is able to attract more audience.
We adopt the scientific design to reach 7680Hz refresh rate and 14bits grayscale. So the LED video screen won’t look flickering in the camera and the visual effect will also look even more amazing.
Front Open full color LED displays are mainly for outdoor advertising. They have been sold to many countries, including Australia, USA, Mexico, Spain, Qatar, Saudi, Thailand, etc. Those countries have very strong sunlight or high humidity. This product is usually used in:
Mall Advertisement; Stadiums scoreboard; Road billboard, etc.
| Item | P3.9 | P4.8 | P5 | P6.67 |
|---|---|---|---|---|
| Pixel Pitch | P3.906mm | 4.807mm | 5mm | 6.67mm |
| LED Type | SMD1921 | SMD1921 | SMD1921 | SMD2727 |
| Module Resolution | 64dots × 64dots | 52dots × 52dots | 64dots × 64dots | 48dots × 48dots |
| Driving Mode | 1/16scan or 1/8scan | 1/7scan | 1/8scan | 1/6scan |
| Module Pixels | 4,096dots | 2,704dots | 4,096dots | 2,304dots |
| Module Size | 250mm × 250mm | 250mm × 250mm | 320mm × 320mm | 320mm × 320mm |
| Cabinet Size | 1,000mm × 1,000mm | 1,000mm × 1,000mm | 960mm × 960mm | 960mm × 960mm |
| Cabinet Resolution | 256dots × 256dots | 208dots × 208dots | 192dots ×192dots | 156dots × 156dots |
| Pixel Density | 65,536dots/㎡ | 43,264dots/㎡ | 40,000dots/㎡ | 22,477.25dots/㎡ |
| Minimum Viewing Distance | ≥3.9m | ≥4.8m | ≥5m | ≥6m |
| Brightness | 5,500nits or 6,500nits | 6500nits | 7,000nits | 7,500nits |
| IP Grade | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 16bits～24bits | 16bits～24bits | 16bits～24bits | 16bits～24bits |
| Viewing Angle | H:110° / V:160° | H:110° / V:160° | H:110° / V:160° | H:110° / V:160° |
| Maximum Power Consumption | 750W/㎡ or 1000W/㎡ | 1000W/㎡ | 750W/㎡ | 750W/㎡ |
| Average Power Consumption | 250W/㎡ or 330W/㎡ | 330W/㎡ | 250W/㎡ | 250 W/㎡ |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz |
| Operating Temperature | ﹣30℃～50℃ | ﹣30℃～50℃ | ﹣30℃～50℃ | ﹣30℃～50℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Iron / Aluminum | Iron / Aluminum | Iron / Aluminum | Iron / Aluminum |
| Cabinet Weight | 40kg/㎡ or 30kg/㎡ | 40kg/㎡ or 30kg/㎡ | 40kg/㎡ or 30kg/㎡ | 40kg/㎡ or 30kg/㎡ |
| Operating System | Windows (Win11, Win12, etc.) | Windows (Win10, Win12, etc.) | Windows (Win11, Win12, etc.) | Windows (Win14, Win15, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
