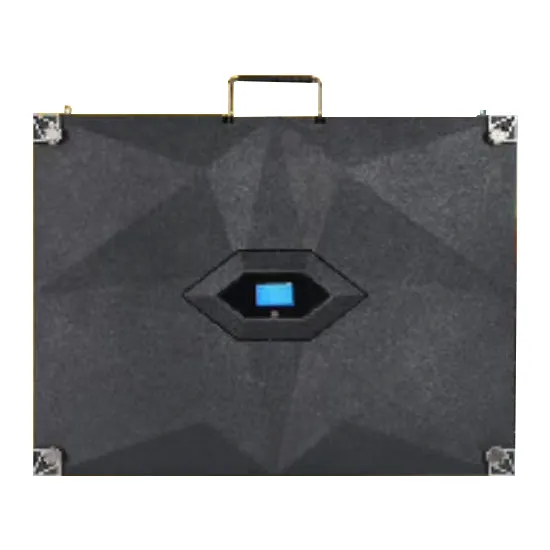

Indoor Full Color LED Display 640×480 Front Service, ultra lightweight, Die Casting Aluminum Cabinet design, 4:3 cabinet size with 640*480mm dimension, flatness, easy to install and disassemble
New Product 640×480mm Series LED Display LED video wall for indoor fixed installation applications. fine pixels, perfect desgin,
front service for LED power supply, cards and modules, ultra lightweight, Die Casting Aluminum Cabinet design
with LCD Status Display, 4:3 ratio cabinet with 640*480mm dimension, flatness, easy to install and disassemble
LED display with frontal service. The magnet LED modules can be removed
by tools on front side only 5 seconds.easy and convient, save you cost and labor.
Front Service Indoor Full Color LED Display 640×480 Series indoor fixed installation LED Display is designed with 4:3 golden ratio,
the cabinet size is 640*480mm. specially designed for a variety of 4:3 and 16:9 LED large screens.

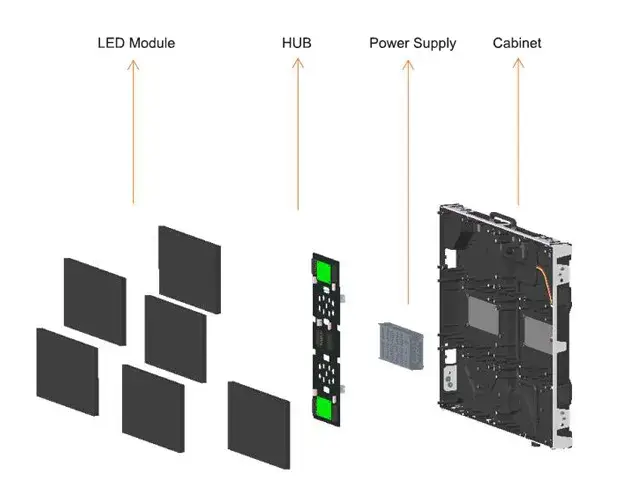

640*480mm Series indoor fixed installation LED Display adopts Magnet Adsorption LED Panel to
make the cabinet is accessed with frontal accessed. easy installation for LED panels.
Support multi connection way vertical connection and horizontal connection
Indoor Full Color LED Display 640×480 Series Frontal Service LED Display supports Dual System Card, Power Double Backup

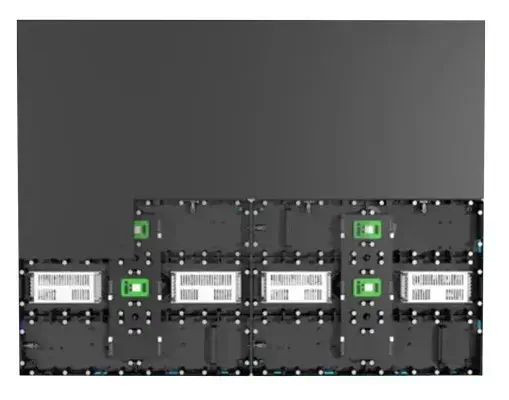

Seamless splicing design with fast locks and simplicity internal wiring, which perfectly realizes the splicing of the cabinet.
the LED display has no gaps and the LED screen is ultra high flatness.
Model | Pixel Pitch | Module Size | Scan Method | Cabinet Size | Cabinet Weight | Brightness (CD/m2) |
---|---|---|---|---|---|---|
LM-P1.25 | 1.25mm | 320x160mm | 1/32 Scan | 640x480mm | 5.5kg | 1000-1200 |
LM-P1.37 | 1.37mm | 320x160mm | 1/29 Scan | 640x480mm | 5.5kg | 1000-1200 |
LM-P1.53 | 1.53mm | 320x160mm | 1/26 Scan | 640x480mm | 5.5kg | 1000-1200 |
LM-P1.66 | 1.66mm | 320x160mm | 1/32 Scan | 640x480mm | 5.5kg | 1000-1200 |
LM-P1.83 | 1.83mm | 320x160mm | 1/29 Scan | 640x480mm | 5.5kg | 1000-1200 |
LM-P1.86 | 1.86mm | 320x160mm | 1/43 Scan | 640x480mm | 5.5kg | 1000-1200 |
LM-P2 | 2mm | 320x160mm | 1/40 Scan | 640x480mm | 5.5kg | 1000-1200 |
LM-P2.5 | 2.5mm | 320x160mm | 1/32 Scan | 640x480mm | 5.5kg | 1000-1200 |
LM-P3.07 | 3.07mm | 320x160mm | 1/26 Scan | 640x480mm | 5.5kg | 1000-1200 |
LM-P4 | 4mm | 320x160mm | 1/20 Scan | 640x480mm | 5.5kg | 1000-1200 |
LM-P5 | 5mm | 320x160mm | 1/16 Scan | 640x480mm | 5.5kg | 1000-1200 |
192*96 dots/module
384*288 dots/cabinet
640*480mm
80*40 dots/module
160*120 dots/cabinet
640*480mm
160*60 dots/module
320*240 dots/cabinet
640*480mm
64*32 dots/module
128*96 dots/cabinet
640*480mm
128*64 dots/module
256*192 dots/cabinet
640*480mm
104*52 dots/module
208*156 dots/cabinet
640*480mm
