Indoor Wallpaper Front Service LED Display 1000×500 and 500×500
1180-5

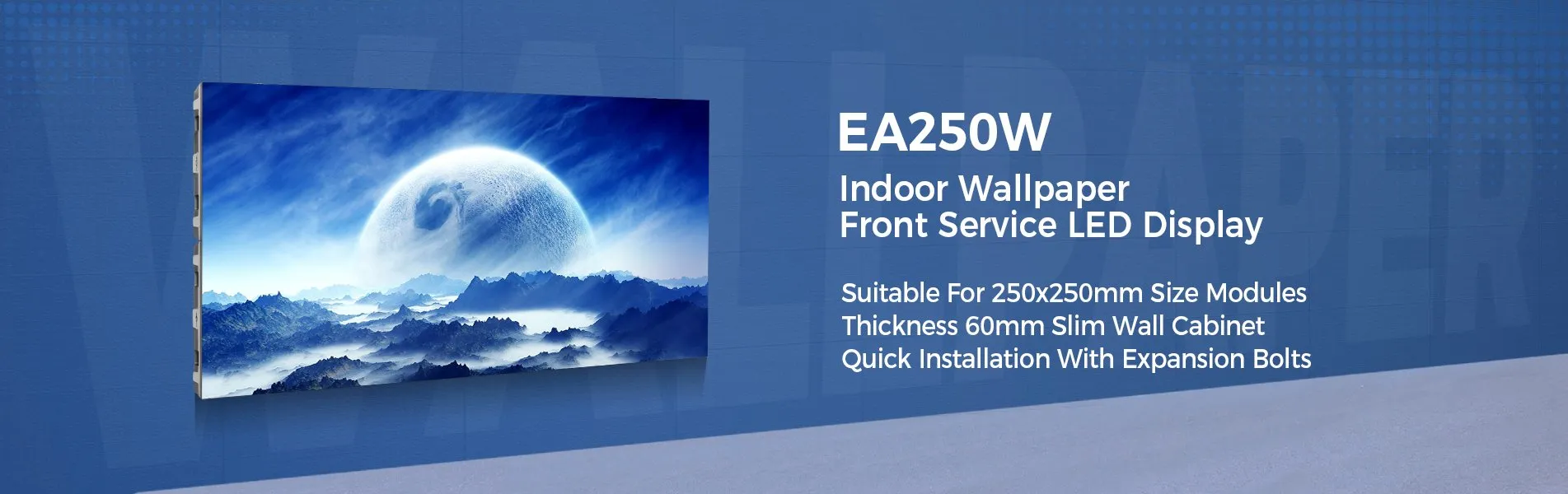

Indoor LED Display Wallpaper Front Service LED Video Screen Visual

The LM250W series indoor Wallpaper Front Service LED Display Screen can be installed directly on the wall without any structure. It is easy to perform pre-maintenance using vacuum suction cup tool.

EA250W-1

More Size Options

The Church LED screen size can be customized according to the 250x250mm module:
500x500mm/750x500mm/1000x500mm/1000x250mm,a variety of sizes to meet your screen size needs.

EA250W-2

Front Service LED Wall  Screen

The vacuum suction cup tool can be used for easy indoor front maintenance.
The operation is simple and fast.

EA250W-3

Perfect Die-Casting Aluminum Cabinet Structure

LM480F1 Series Cabinet Design with elegant appearance and human layout, easy installation and maintenance,
pleasing to the eye with great visual experience.

EA250W-4

Slim LED Wall Cabinet

The ultra-thin wall-mounted cabinet does not require any structure,
and the thickness is only 54mm, which is thinner than any other wall-mounted screen.

EA250W-5

Suitable For 250x250mm Standard Size LED Modules

Standard LED Modules LED Panels can be quickly assembled and maintained. It is also convenient to change the pixel pitch
by simply replacing the modules as they have the same module size and structure.

EA250W-6

Quick Installation

Indoor Full Color LED Display, Quick installation with expansion bolts,
one person can handle it, Simple and fast operation.

EA250W-7

Wide Viewing Angle

Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area.
It offers you clear and natural images in all directions.

EA250Wc

Indoor Full Color LED Video Display Screen Parameter

Pixel Pitch (mm)P1.95P2.6P2.97P3.91P4.81
ModelLM250w-P1.95LM250W-P2.6LM250W-P2.97LM250W-P3.91LM250W-P4.81
Pixel ConfigurationSMD1515SMD1515SMD2020SMD2020SMD2020
Density (Pixels/㎡)262,144145,456112,89665,53643,264
Module Resolution (Pixel)128x12896x9684x8464x6452x52
Module Size (mm)250x250250x250250x250250x250250x250
Driving Mode (Duty)1/321/321/28 1/161/13
Cabinet Size (mm)1000x250 *1000x250 *1000x250 *1000x250 *1000x250 *
Cabinet Weight (KG)66666
Brightness (CD/㎡)≥1200≥1200≥1,000≥1,200≥1,000
Viewing Angle (°)140140140140140
Gray Grade (Bits)1414141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)480480480576560
Avg. Power Consumption (W/㎡)160160160192190
Frame Frequency (Hz)≥60≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60-20~+60-20~+60-20~+60
Lifetime (Hours)100,000100,00100,000100,000100,000
Protection GradeIP31IP31IP31IP31IP31

*Remark:The LM250W series is available in 6 sizes
(500x250mm / 500x500mm / 750x250mm / 750x500mm / 1000x250mm / 1000x500mm)
