Interactive LED Floor Display 500×1000 Indoor Interactive Dance Floor LED Screen Manufacturer

Compared with the traditional LED display, the floor LED display adopts a special design in terms of load-bearing,
protection performance, and heat dissipation performance.
Its purpose is to make the floor tile screen adaptable to high-intensity stepping and long-term stable operation.

Floor-LED-screen-1

Easy Installation

LED floor tiles display supports multiple installation methods. According to the actual installation environment,
you can choose different installations.Ground installation, embedded installation,
steel frame installation, or rail installation are all ok.

Floor-LED-screen-2

Interactive LED Dance Floor Display Module with Anti-scratch Mask

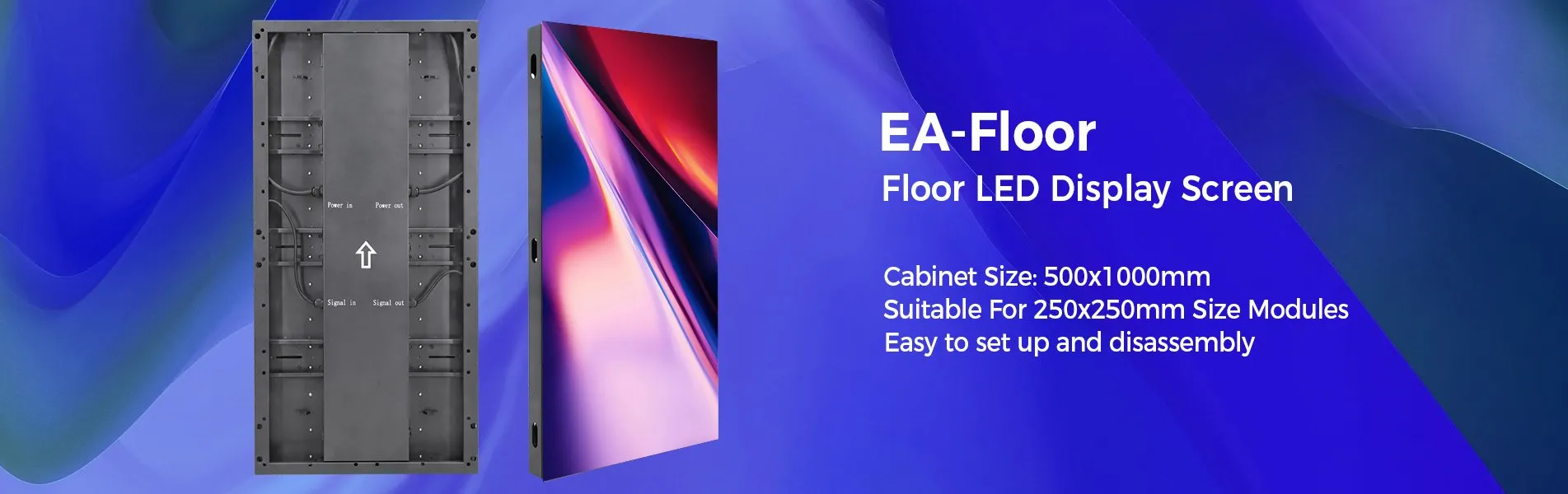

The cabinet is suitable for modules of 250x250mm, and the mask is convexly designed to enhance
the wear resistance of the surface of the module,and the protective rubber ring increases waterproof performance

3-1

Excellent cabinet design

High-protection cabinet design, IP66 dustproof and waterproof, openable back cover, easy to maintain power supply and receiving card.

4-1

Front Service

With magnetic design,supports front service, save your time and energy to finish the maintenance

5

Super Strong Load-bearing Performance

Loading over 2,000KG/m² (a SUV car) on LED Panel,
Good load bearing is the key to ensure the normal operation of the display equipment.

6

Wide Application

Interactive Dance Floor LED Display Archives are widely used in bars, such as Dance Floor LED Display, also theaters, hotels, stage performances,
concert halls, shopping malls and other places.

7

Indoor 500x1000mm Dance Floor LED Screen Parameter

Pixel Pitch (mm)P2.97P3.91P4.81P5.2P6.25
ModelLM-Floor-P2.97LM-Floor-P3.91LMFloor-P4.81LM-Floor-P5.2LM-Floor-P6.25
Pixel ConfigurationSMD1415SMD1921SMD1921 SMD1921 SMD1921
Density (Pixels/㎡)112,89665,53643,2643686425600
Module Resolution (Pixel)84x8464x6452x5248x4840x40
Module Size (mm)250x250250x250250x250250x250250x250
Driving Mode (Duty)1/21 1/161/131/121/10
Cabinet Size (mm)500x1000500x1000500x1000500x1000500x1000
Cabinet Weight (KG)2525252525
Brightness (CD/㎡)≥2,500≥2,500≥2,500≥2,500≥2,500
Viewing Angle (°)120120120120120
Gray Grade (Bits)1414141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)720720560800800
Avg. Power Consumption (W/㎡)240240190400400
Frame Frequency (Hz)≥60≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60-20~+60-20~+60-20~+60
Lifetime (Hours)100,000100,000100,000100,000100,000
Protection GradeIP66(front), IP65(rear)IP66(front), IP65(rear)IP66(front), IP65(rear)IP66(front), IP65(rear)IP66(front), IP65(rear)
