LEEMAN NG500 Series 500×500 Rental LED Display P1.5 P1.9 P2.6 P2.9 P3.9 P4.8
LEEMAN HD Rental LED Display

Leeman Display XR Series Rental LED Display New design incorporates many aesthetic elements, adopts High strength die-casting aluminum,
only 7.5kg per cabinet.better performance with high definition visual display.

LEEMAN NG500 Series 500×500 Rental LED Display P1.5 P1.9 P2.6 P2.9 P3.9 P4.8

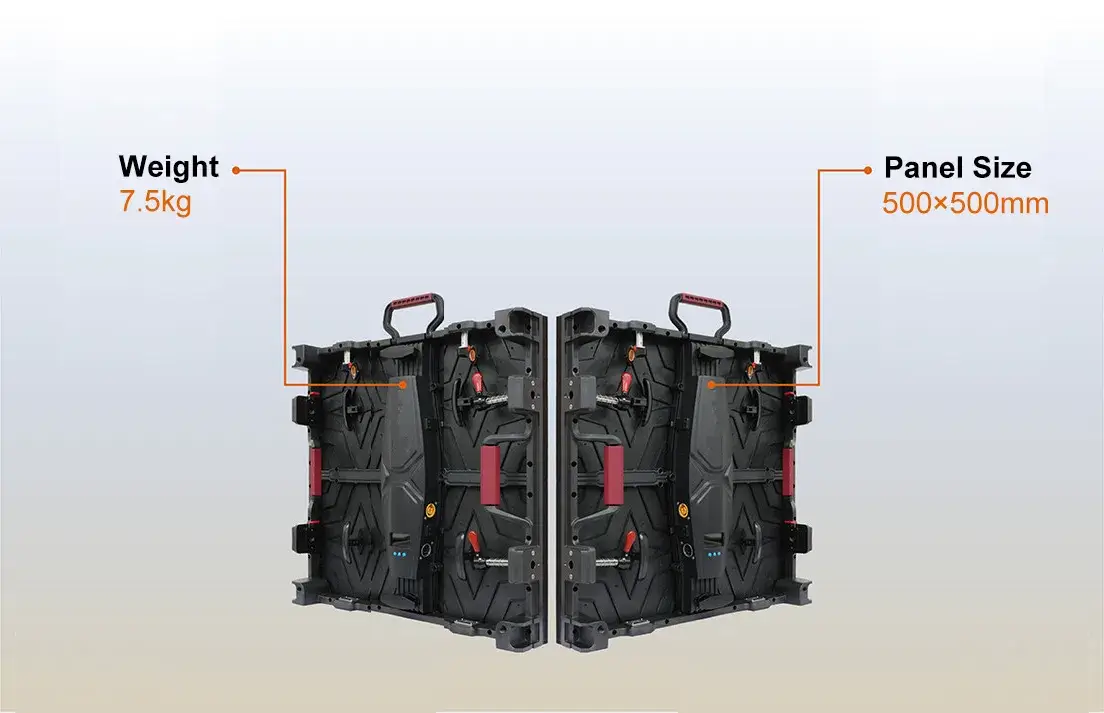

Lightweight and Thin

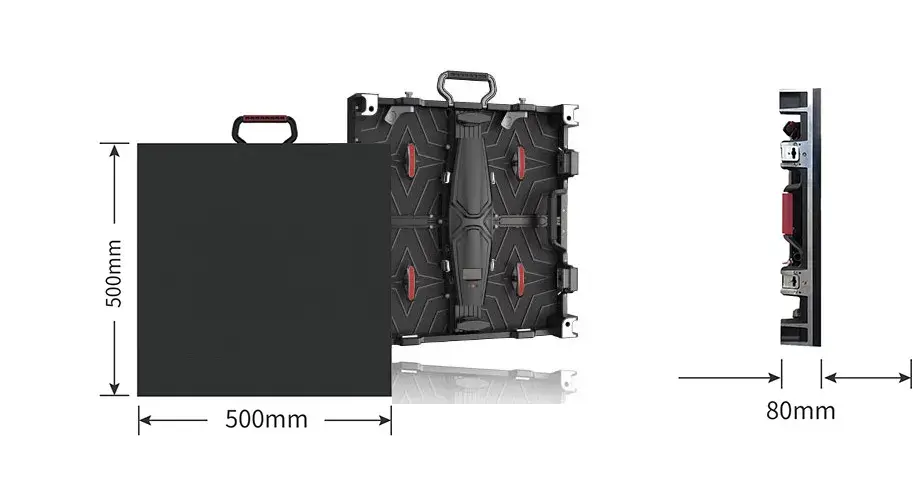

Leeman XR series Rental LED display with ultra thin cabinet design, the thickness is only 80mm.
Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless.

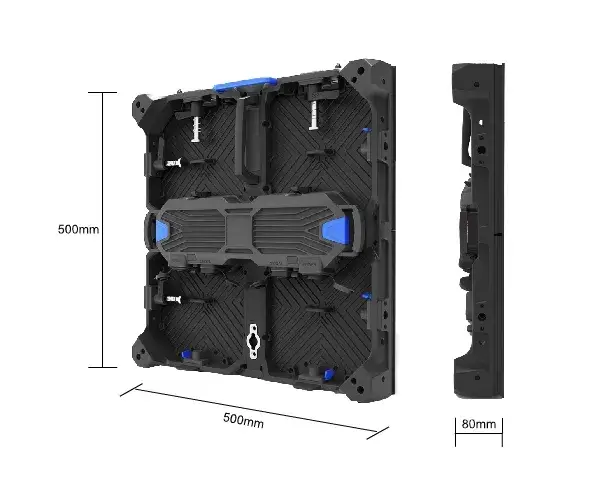

Detachable 500mmx500mm Series Rental LED Display P1.56 P1.95 P2.6 P2.97 P3.91 P4.81
Perfect Structure

has the domestic top design team,the design innovation has its own unique philosophy,with a number of core technologies.
Innovative structural design,avant-garde body lines,Give you extraordinary experience.

LEEMAN NG500 Series 500×500 Rental LED Display P1.5 P1.9 P2.6 P2.9 P3.9 P4.8

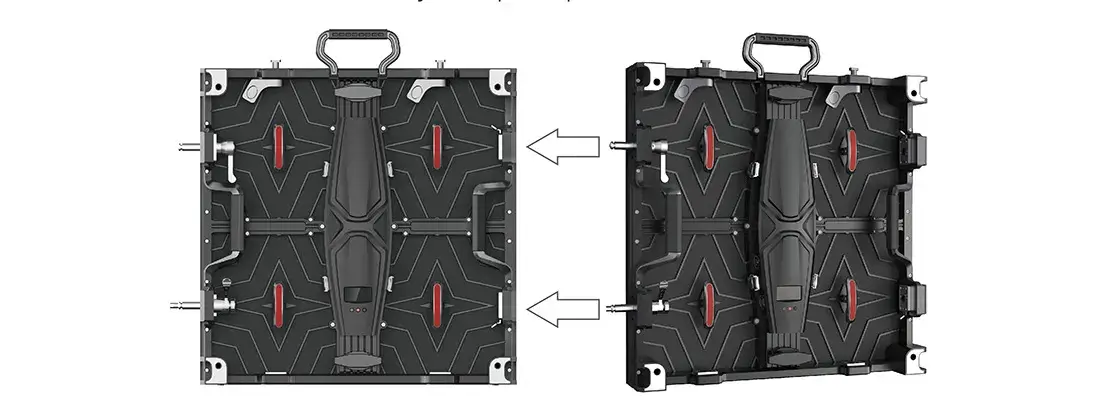

Fast Installation

LEEMAN LED Indoor Outdoor Rental LED Display Cabinet 1000×500 Auto-locking system for fast and easy 1 man installation with ultimate safty and pixel protection

LEEMAN NG500 Series 500×500 Rental LED Display P1.5 P1.9 P2.6 P2.9 P3.9 P4.8

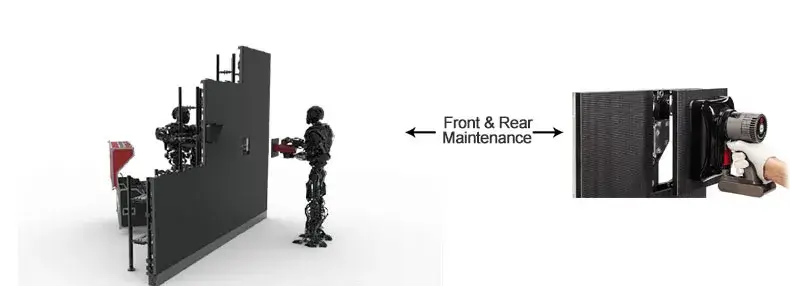

Double Maintanence Service

LEEMAN XR Series Rental LED Display is dual maintenance product, not only 100% front accessable but also can do rear service..
The LED panels are magnetic and can be removed by tools from front side in 5 seconds. easy and convient, save you cost and labor

LEEMAN NG500 Series 500×500 Rental LED Display P1.5 P1.9 P2.6 P2.9 P3.9 P4.8

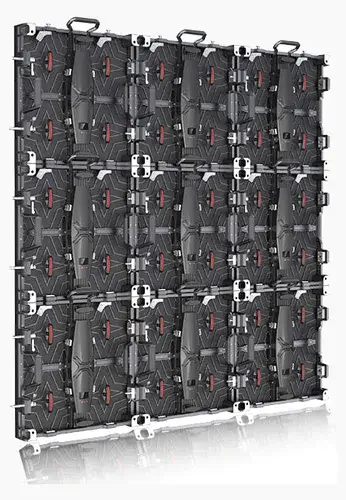

Seamless Display and Better Visual Effects

LEEMANLED High precision aluminum cabinet frame make seamless splicing image and video display, offering you the perfect visual experience you desire from any angles.The picture quality confronts viewers with an entirely new sensory experience.

Intelligent Management

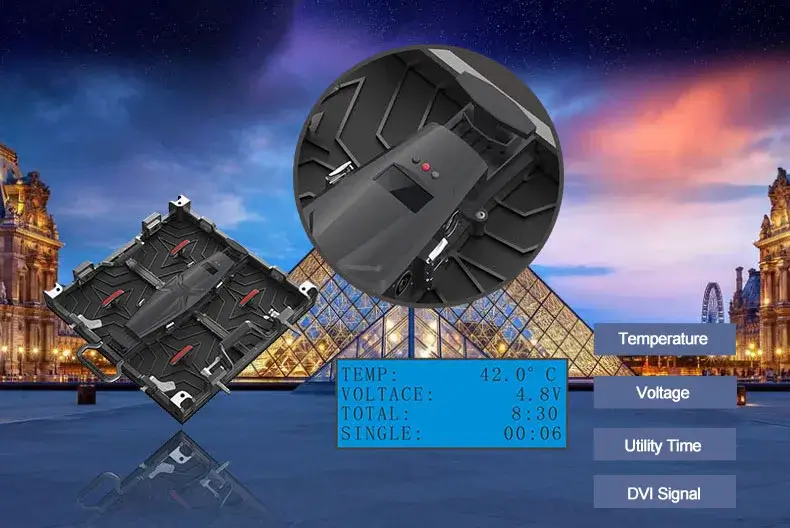

LEEMAN XR Series Rental LED Display cabinet backside with status LED display which can show the working conditions
such as working temperature, working voltage, the screen lifespan and the DVI signal.

LEEMAN NG500 Series 500×500 Rental LED Display P1.5 P1.9 P2.6 P2.9 P3.9 P4.8
LEEMAN NG500 Series 500×500 Rental LED Display P1.5 P1.9 P2.6 P2.9 P3.9 P4.8

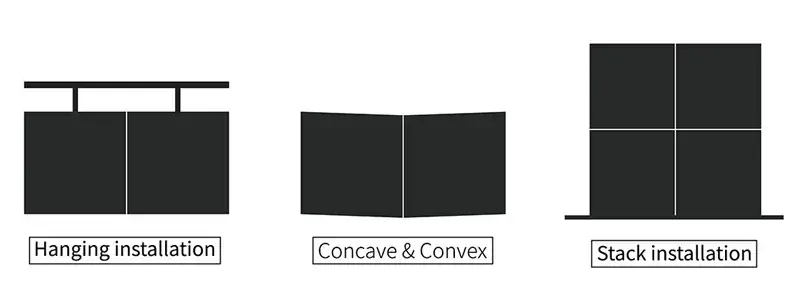

Multi Installation Way of Cabinet

LEEMAN Support 3 installation ways of cabinet with hanging installation, concave& convex installation, stack installation.

Dual Service Frontal Rear Rental LED Display

Pixel pitch2.604mm2.976mm3.91mm4.81mm
Pixels per cabinet192×192 (HxV)168×168 (HxV)128×128 (HxV)104×104 (HxV)
LED lifetime100,000h (video – 50% brightness)
Brightness≥6000 nits(Outdoor) / ≥1200 nits(Indoor)
Module size250*250mm
Module resolution96*96dots84*84dots64*64dots52*52dots
Refresh rate3,840Hz - 7,680Hz
Hor. viewing angle160° +/-5° (@50% brightness)
Vert. viewing angle160° +/-5° (@50% brightness)
Brightness uniformity>98%
Dimming0-100%
Grey Level16bits - 24bits
Avg Power consumption350 W/m²320 W/m²300 W/m²280 W/m²
Max Power consumption680 W/m²640 W/m²620 W/m²600 W/m²
Operation power voltage100-240V / 50-60Hz
Operational temperature-10°C to +40°C / 14°F to 104°F
Operational humidity10-80%
IP ratingIP54 for Indoor, IP65 for Outdoor
Dimensions500 x 500 x 80 mm (WxHxD)/ 19.6 x 19.6 x 3.14 inch (WxHxD)
Weight / Tile7.5 kg / 16.53 lbs
ServiceabilityFront and back service
CertificationsCE, EMC, UL, FCC class A, RoHS, WEE, REACH
Warranty3 years standard product warranty
Products
LEEMAN NG500 Series 500×500 Rental LED Display P1.5 P1.9 P2.6 P2.9 P3.9 P4.8

P2.604

96*96 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display

LEEMAN NG500 Series 500×500 Rental LED Display P1.5 P1.9 P2.6 P2.9 P3.9 P4.8

P2.976

84*84 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display

LEEMAN NG500 Series 500×500 Rental LED Display P1.5 P1.9 P2.6 P2.9 P3.9 P4.8

P3.91

64*64 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display

LEEMAN NG500 Series 500×500 Rental LED Display P1.5 P1.9 P2.6 P2.9 P3.9 P4.8

P4.81

52*52 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
