Narrow Pixel Pitch LED Displays 1000x250 And 1000x500

Excellent Indoor LED Video Panel P1.953, P2.5, P2.604, P2.976, P3.91, P4.81

Die-casting Aluminum

Cost-Effective

Front Access

Quick Installation

Thin Screen

1920Hz ~ 3840Hz

Easy Maintenance

14bits～24bits

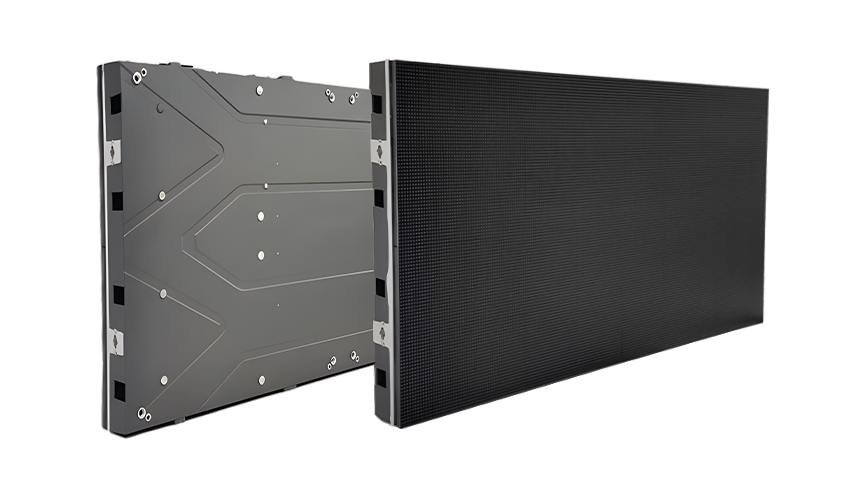

HD Fine Pitch LED Displays | Fine Pixel Pitch LED Screens Die-Casting Aluminum Design

As customers have higher requirements for LED displays, more and more cabinets have been developed to meet market demands. Compared with the traditional bulky cabinet, the die-casting aluminum cabinet with humanized design is stronger, more light-weight and precise. This LED panel is highly praised for better user experience. The pixel pitches of this LED screen are SMD P1.9, P2.5, P2.6, P2.9, P3.9 and P4.8.

P1.25 front service 16:9 small pixel pitch HD led wall Fully Front Access Service

The cabinet, module, power supply and other components are with fully front access service, therefore super easy disassembly of the fine pitch LED screen is allowed.The cabinet can be accessed from front side for maintenance and installation.

P1.9 Fine Pixel Pitch LED Display Various installation is available

LeemanLED Max is light and thin. It can not only be fixed on the wall but also can realize hoisting with the hanging bar. Thanks to the excellent cabinet structure design, the installation method is flexible, and the screen can fit well into different projects.

Fine Pixel Pitch Mini LED Display Screen High Refresh Rate 3840Hz

The high refresh rate ensures the smoothness of every frame of the images, thus the LED display won’t appear flicking on the highspeed camera.

Indoor Fixed Curved Narrow Pixel Pitch LED Displays Seamless Connection

High precision CNC fabrication and the cabinet precision within 0.05mm bring seamless assembly. Besides,signal cables and power cables are inside of the cabinets and the LED screen without external cables brings more stability.

Flexible Curved Narrow Pixel Pitch LED Display Large Viewing Angle

The surface of the small LED screen looks very flat and neat.160° wide horizontal and vertical viewing support maximum audience engagement in short viewing distance.

P1.25/P1.56/P1.875/P2.5 Front Maintenance Pixel Pitch LED Display Installation-various shaps

Flexible in different shapes installation: 90 degree installation with cutted panel Concave and Convex installation possible

16:9 Fine Pitch LED Display For 4K/UHD Digital Signage Video Wall Excellent Visual Effect

The images and video visual effects are amazing. LeemanDisplay Max series has an excellent visual performance because we adopt high-quality black LED. The color contrast ratio is even better than 10000:1. Armed with HDR technology and color enhancement technology, the white balance of the screen reaches a 100% sRGB and stunning visual performance. Even in high light environments the screen also looks very clear, and the visual effect looks perfect.

Front maintenance UHD fine pixel pitch LED display Application Fields

This indoor LED panel is usually be used for:

Fashion shop; Meeting room video wall; Church digital screen; Indoor advertising; Airport, etc.

Parameter

Item	P1.9	P2.5	P2.6	P2.9
Pixel Pitch	1.953mm	2.604mm	2.604mm	2.976mm
LED Type	SMD1515/ SMD1415(outdoor)	SMD1515 / SMD1415(outdoor)	SMD1515 / SMD1415(outdoor)	SMD2020 / SMD1415(outdoor)
Module Resolution	128dots x128dots	100dots x 100dots	96dots x 96dots	84dots x 84dots
Driving Mode	1/32scan	1/32scan	1/32scan	1/28scan
Module Pixels	1,6384dots	10,000dots	9,216dots	7,056dots
Module Size	250mm x 250mm	250mm x 250mm	250mm x 250mm	250mm x 250mm
Cabinet Size	1000mm x 500mm or 500mm x 500mm	1000mm x 500mm or 500mm x 500mm	1000mm x 500mm or 500mm x 500mm	1000mm x 500mm or 500mm x 500mm
Cabinet Resolution	512dotsx 256dots or 256dotsx 256dots	400dotsx 200dots or 200dotsx 200dots	384dotsx 192dots or 192dotsx 192dots	336dotsx 168dots or 168dotsx 168dots
Pixel Density	262,144dots/㎡	160,000dots/㎡	147,456dots/㎡	112,896dots/㎡
Minimum Viewing Distance	≥1.9 m	≥2.5 m	≥2.6 m	≥2.9 m
Brightness	800nits～1,200nits / 2,000nits	800nits～1,200nits / 2,000nits	800nits～1,200nits / 2,000nits	800nits～1,200nits / 2,000nits
IP Grade	IP43	IP43	IP43	IP43
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	14bits～24bits	14bits～24bits	14bits～24bits	14bits～24bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	500W/ ㎡	450W/ ㎡	450W/ ㎡	350W/ ㎡
Average Power Consumption	160W/ ㎡	150W/ ㎡	150W/ ㎡	115W/ ㎡
Screen Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours	≥100,000 hours
Input Voltage	AC110V – AC220V @ 50Hz/60Hz	AC110V – AC220V @ 50Hz/60Hz	AC110V – AC220V @ 50Hz/60Hz	AC110V – AC220V @ 50Hz/60Hz
Operating Temperature	﹣20℃～50℃	﹣20℃～50℃	﹣20℃～50℃	﹣20℃～50℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	5.5kg/panel	5.5kg/panel	5.5kg/panel	5.5kg/panel
Operating System	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)
Signal Source Compatibility	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
