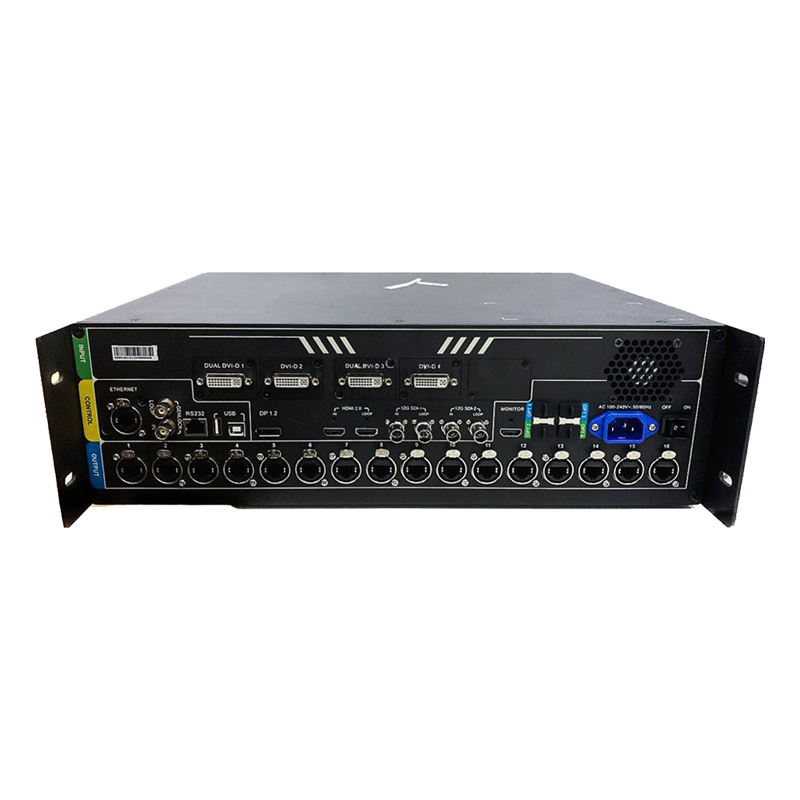

NovaStar NovaPro UHD Jr All-in-One 4K LED Video Processor Controller
1). All-in-One series
2). HDMI / DP / DVI / 12G-SDI
3). 10,400,000 pixels
4). 3 Layers + 1 BKG
5). HDR10-Optima, Low Latency

The NovaPro UHD Jr Processor is a Novastar’s new all-in-one controller that features excellent video processing capabilities, sending card functions and led screen configurations.

The NovaStar NovaPro UHD Jr provides a variety of video input connectors, supporting 4K×2K@60Hz image processing and sending capabilities.

With the help of smart control software V-Can from Novastar, the NovaPro UHD Jr can enable richer image mosaic effects and faster and easier operations.

The NovaPro Jr UHD video wall controller  can send the processed video to the LED screen via Neutrik Ethernet ports and optical fiber ports. Thanks to its powerful video processing capabilities and sending functions.

NovaPro UHD Jr is well suited for stage control systems, conference sites, activities, exhibition sites and other high-end rental applications as well as fine-pitch LED displays.

Features:

• A variety of inputs and outputs
  Provides 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 with loop output and 2 × 12G-SDI with loop output.
• More output connectors, larger loading capacity
  Provides 16 × Neutrik Ethernet output and 4 × optical fiber output, with loading capacity up to 10,400,000 pixels.
  The maximum width is 16K and maximum height is 8K.
• DVI mosaic
  An input source can be made up of at most 4 DVI input sources.
• HDR output
• Greatly enhances display image quality, providing more clear and vivid image.
• Decimal frame rates
  The supported frame rates are 23.98, 29.97 and 59.94.
• Low-latency output
  Reduces the latency from sending card to receiving card by 2 frames when the device is used together with NovaStar Armor series receiving cards
  (A8/A8s/A9s/A10s Plus).
• Customized BKG settings
  Supports pure color and image BKGs.
• Personalized image scaling
  Supports 3 kinds of image scaling modes: full screen, pixel to pixel, custom.
• Capture function
  Captures input source image which can be used as a BKG image.
• Image mosaic
  Up to 4 NovaPro UHD Jr units can be connected to load a super-large screen when used with the video distributor.
• V-Can (smart control software from NovaStar) supported
• 10 presets
  At most 10 user presets can be created and saved as templates which can be used directly and conveniently.
• EDID management supported
  Supports custom EDID and standard EDID.
