3D naked eye Outdoor Energy Saving LED Screen 960×960 Magnesium alloy cabinet design, Energy Saving LED Display, Standard size cabinet with 960*960mm dimension, 320mm*320mm module size. high flatness, easy to install and disassemble
ES960 Series Outdoor Energy Saving LED Screen 960×960 is LEEMANLED latest outdoor energy saving LED screen, the displaty cabinet size is 960*960mm dimension,
the led display module size is 320*320mm. ultra low heat and has excellent performance in improving energy efficiency and environment protection.
1. Using R / GB to separate power supply, current is accurately distributed to the lamp beads, reducing power consumption.
2. Reduce the temperature, no need for air conditioning, save cost.
3. Reduce power consumption, save electricity and energy, reduce costs greatly.
4. Uniform heat distribution, constant color temperature, no color deviation, no color block, good consistency.
5. The screen cabinet has low heat, which is about 16 ℃ lower than the common LED display product
LEEMANDISPLAY ES960 series Energy saving LED Panel is power supplied separately with R and GB, which means that the voltage and current are accurately distributed to the red, green and blue lamp beads. The current passes through the lamp beads and then to the negative electrode of the IC. The separate power supply scheme effectively reduces the power consumption and greatly reduces the heat generated during the operation of the display screen.

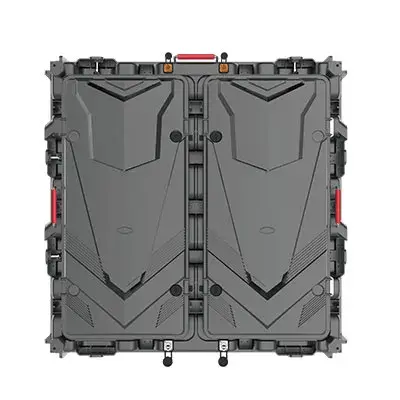

LEEMAN ES960 Series energy saving LED Board is made by hard magnesium alloy cabinet, fashion design and top class product structure for better heat dissipation and low heat. The heat of the display is uniform, the color temperature is constant, and no color block in the display at all, and the picture display effect is excellent. energy consumption is maximized without reducing LED display brightness and contrast .

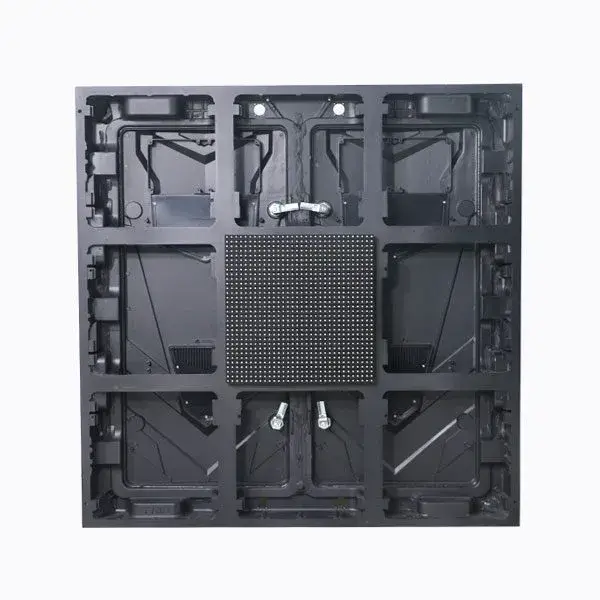

960*960mm standard cabinet design with 320*320mm LED module panel. the led module features frontal service
LEEMAN Outdoor Energy Saving LED Screen 960×960 Equipped with Leeman’s unique lock, the position of each cabinet can be precisely adjusted from Six directions, left or right, up or down, front or back, every cabinet can be positioned to the exact place with accuracy to millimeter, presenting a ultraflat and seamless cabinet alignment.
Pixel Pitch | P4mm | P5.33mm | P6.67mm-ES | P8mm-ES | P10mm-ES |
---|---|---|---|---|---|
NationStar LED | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
Module size | 320*320mm | ||||
Module resolution (dot) | 80*80 | 60*60 | 48*48 | 40*40 | 32*32 |
Density | 62500 | 35156 | 22477 | 15625 | 10000 |
LED Cabinet Size | 960*960mm (Customized Size Avaliable) | ||||
Cabinet Weight | 26kg/Aluminum LED Cabinet | ||||
Material | Aluminum/Steel | ||||
Brightness | >6000 nits | >6000 nits | >6500 nits | >7000 nits | >7000 nits |
Avg power consumption | 380W | 360W | 280W | 240W | 280W |
Max power consumption | 950W | 900W | 650W | 600W | 650W |
Best Viewing Distance | 4-40m | 5-55m | 6-66m | 8-80m | 10-100m |
Fresh frequency | 3,840Hz - 7,680Hz | ||||
Protective grade | Waterproof IP65 Front and Back | ||||
Maintain Way | Frontal & Rear Service-Dual Mode | ||||
Scan Method | 1/16S | 1/7S | 1/6S | 1/5S | 1/2S |
Certificates | EMC,UL,CE,RoHs,FCC | ||||
Warranty | 3 Years Warranty |
80*80 dots/module
240*240 dots/cabinet
Energy Saving
32*32 dots/module
96*96 dots/cabinet
Energy Saving
60*60 dots/module
180*180 dots/cabinet
Energy Saving
48*48 dots/module
144*144 dots/cabinet
Energy Saving
40*40 dots/module
120*120 dots/cabinet
Energy Saving
