DIP SMD P2 P2.5 P3 P3.076 P3.33 P4 P5 P6 P6.67 P8 P10 Outdoor Fixed Installation LED Display Screen
1180-7-1

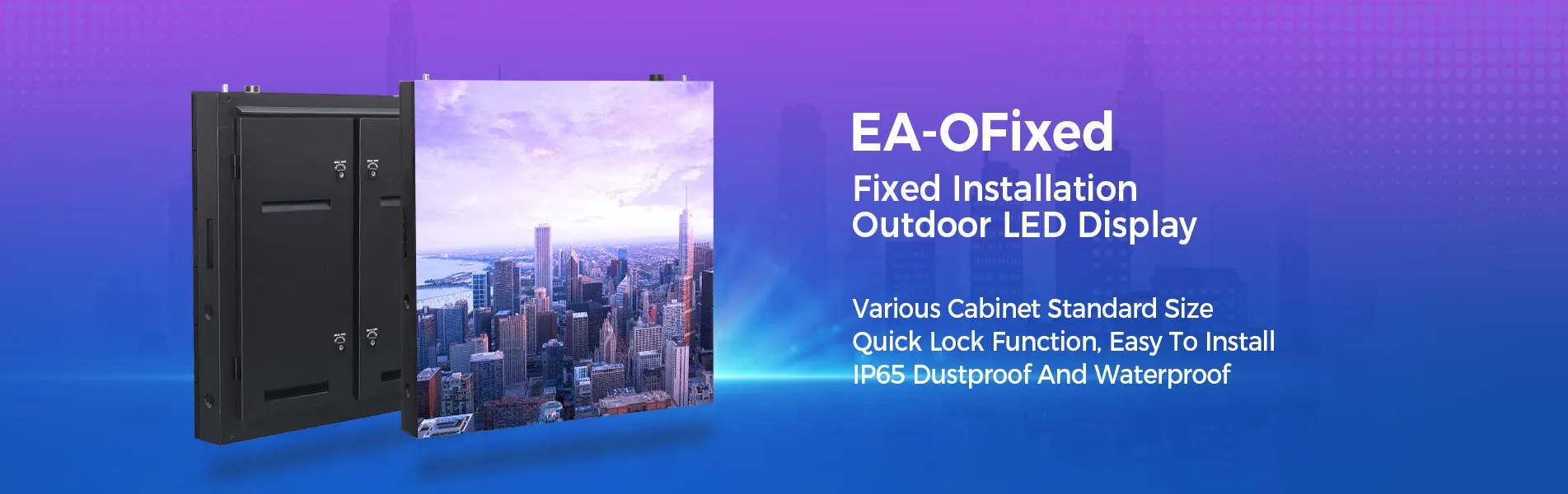

Outdoor LED Display Fixed Installation LED Screen LEEMAN-Fixed Series

The SMD Encapsulation technology with high brightness makes the Outdoor Fixed LED display has a Vivid and smoother pictures when in use.

1-3-1

Best Color Uniformity and High Brightness

We choose the best MBI5124 ICN2153 driver IC for outdoor NationStar Gold Wire LEDs, with high reliability and contrast ratio,
to meet the needs of high brightness 5000nit-9000nits, high refresh rate 3840Hz-7680Hz, high grayscale, and the best color uniformity.

2-3-1

Waterproof Cabinet Structure advantages

Outdoor fixed installation LED Billboard cabinets are heat-treated with iron materials to improve heat resistance.
The cabinet has high hardness and excellent wind and cold resistance.

3-3

Delicate Cabinet Design

Outdoor waterproof full Color LED display products are lighter in weight, LED display with quick lock function, compact structure,
easy to install, no gaps.The user-friendly handlebar design makes it easier to move the cabinet.

4-4

High Efficieny Cooling

There are 4 aerofoil fans in each cabinet to make 960×960 Outdoor Fixed LED display cooling immediately.
entilation volume is 6.6 cubic meter per minute, air circulation 25 times every minute inside the cabinet.

5-2

All Weather Outdoor Work

Using LeemanLED’s unique protection technology, the display can work normally under any weather conditions!
High level of protection is guaranteed, durable, reliable, anti-ultraviolet, and stable.

6-2-1

LED Billboard Manufacturers IP65 Dustproof And Waterproof

IP65 dustproof and waterproof, can resist some bad weather in outdoor activities.

7-1

How to install an outdoor LED display? Seamless Display, Better Visual Effects

High precision LED display make seamless splicing image and video display, offering you the perfect visual experience you desire.
The picture quality confronts viewers with an entirely new sensory experience.

8-2

Wide Viewing Angle

Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.

fixed-outdoor

Outdoor Fixed Installation LED Display Iron Cabinet Parameter

Pixel Pitch (mm)P3P4P5P6P8P10 (2S)P10 (4S)P10 (DIP)P10 (DIP)P16 (DIP)
ModelLEEMAN-Fixed-P3-576x576LEEMAN-Fixed-P4-512x512LEEMAN-Fixed-P5-640x640LEEMAN-Fixed-P6-768x768LEEMAN-Fixed-P8-1024x768LEEMAN-Fixed-P10-2S-960x960LEEMAN-Fixed-P10-4S-960x960LEEMAN-Fixed-P10D-32x16-960x960LEEMAN-Fixed-P10D-16x16-960x960LEEMAN-Fixed-P16D-1024x1024
Pixel ConfigurationSMD1415SMD1921SMD1921SMD3535SMD3535SMD3535SMD3535DIP346DIP346DIP346
Density (Pixels/㎡)111,11162,50040,00027,77815,62510,00010,00010,00010,0003,906
Module Resolution (Pixels)64x6464x3264x3232x3232x1632x1632x1632x1616x1616x16
Module Size (mm)192x192256x128320x160192x192256x128320x160320x160320x160160x160256x256
Driving Mode (Duty)1/161/81/81/81/41/21/41/41/41/1
Cabinet Size (mm)576x576512x512640x640768x7681024x768960x960960x960960x960960x9601024x1024
Cabinet Weight (KG)15111623.5303636363642
Brightness (CD/㎡)≥5,500≥5,500≥6,000≥6,500≥6,500≥7,500≥6,000≥8,000≥8,000≥9,000
Viewing Angle (°)140140140140140140140140140140
Gray Grade (Bits)14141414141414141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)810900836840760850540520520540
Avg. Power Consumption (W/㎡)270300280280260285180175175180
Frame Frequency (Hz)≥60≥60≥60≥60≥60≥60≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60
Lifetime (Hours)100,000100,000100,000100,000100,000100,000100,000100,000100,000100,000
Protection GradeIP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)

Fixed Installation Outdoor LED Screen (die-cast aluminum cabinet) Parameter

Pixel Pitch (mm)P3(die-cast)P4(die-cast)P4(die-cast)P6(die-cast)P8(die-cast)P8(die-cast)
ModelLEEMAN-Fixed-P3-576x576LEEMAN-Fixed-P4-768x768LEEMAN-Fixed-P4-1024x768LEEMAN-Fixed-P6-768x768LEEMAN-Fixed-P8-768x768LEEMAN-Fixed-P8-1024x768
Pixel ConfigurationSMD1415SMD1921SMD1921SMD3535SMD3535SMD3535
Density (Pixels/㎡)111,11162,50062,50027,77815,62515,625
Module Resolution (Pixels)64x6464x3264x3232x3232x1632x16
Module Size (mm)192x192256x128256x128192x192256x128256x128
Driving Mode (Duty)1/161/81/81/81/41/4
Cabinet Size (mm)768x768768x7681024x768768x768768x7681024x768
Cabinet Weight (KG)232330232330
Brightness (CD/㎡)≥5,500≥5,500≥5,500≥6,500≥6,500≥6,500
Viewing Angle (°)140140140140140140
Gray Grade (Bits)141414141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)810900900840760760
Avg. Power Consumption (W/㎡)270300300280260260
Frame Frequency (Hz)≥60≥60≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60
Lifetime (Hours)100,000100,000100,000100,000100,000100,000
Protection GradeIP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)
LeemanLED has more than 25 years of experience manufacturing Fixed LED Displays & Rental LED Screens for INDOOR and OUTDOOR purposes.
Due to the modular system, our LED Video Wall Screens can adapt to many applications: Churches, Retail, Education, Rental Companies, Events, TV Studios, AVP, and many other visual experiences.
