Outdoor P2.5 P3.076 LED Display 640×640 Plus Series

Outdoor HD 4K 8K LED Digital Billboard Display

VIDEO

Ultra thin & Slim

P2.5 outdoor LED Display Cabinet size 640mmX640mm，weight for per panel is only 13.5Kg, saving transportation cost and labor cost.

HIGH DENSITY For 2K/4K / 8K

There will be 160000dots per sqm, for Leeman LED Plus Series it only needs a very small area (smallest 12m²) to
meet Full 2K/4K/8K display.

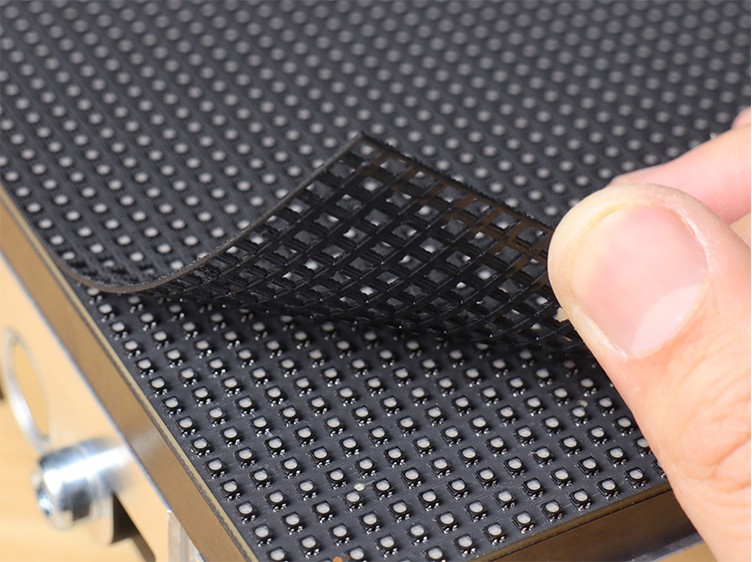

Outdoor P2.5 P3.076 LED Display 640×640 LED Module Mask Design

Protecting LED lamps from damage. screw-fixed mask will last long and won’t deform easily ,
better flatness & display effects.

High Grade Protection

Built to withstand the most outdoor demanding elements with IP65 rating , the panel is suitable for billboards, outdoor signage, and more!

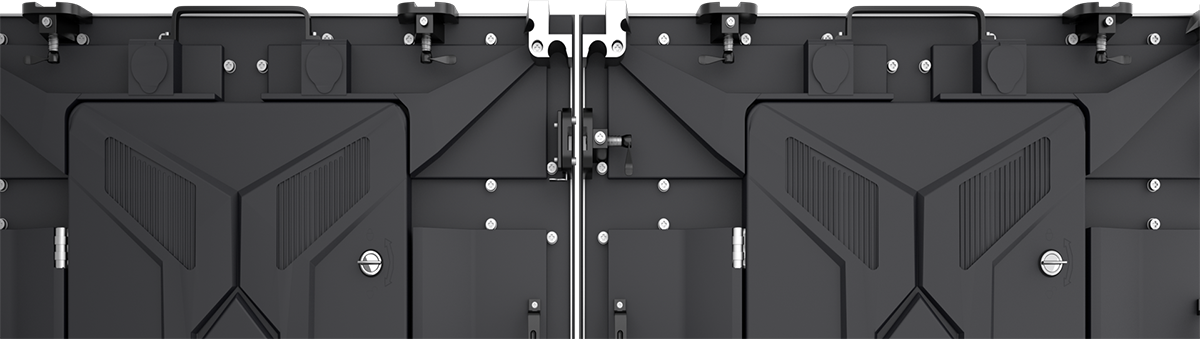

Designed For Quick Assembly

P2.5 Outdoor LED Screen Cabinet with fast lock and aviation plug can vary for quick billboard installations or smaller
outdoor signage , fast and easy maintenance, save installation expense.

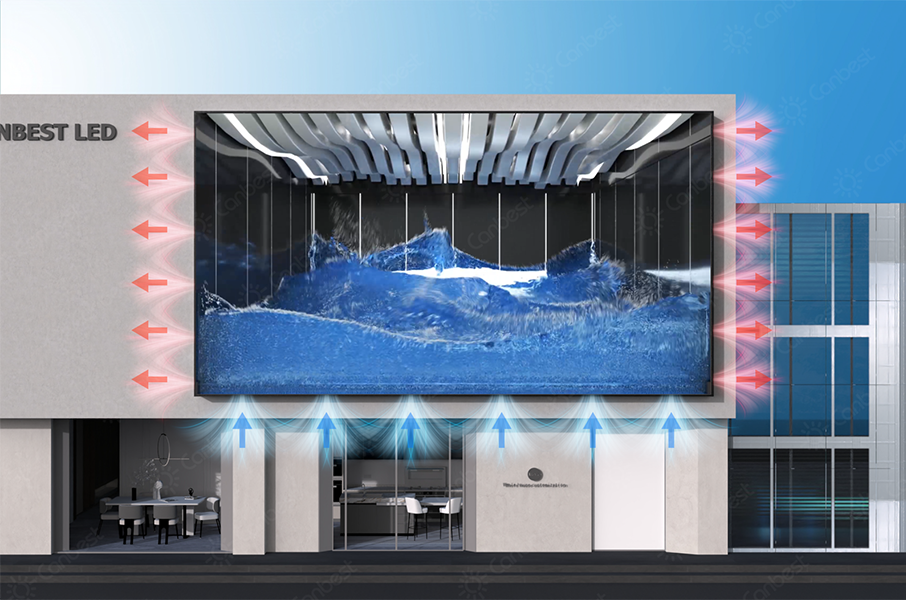

Superb Cooling System

High thermal conductivity aluminum cabinet working with quiet fans
Superb cooling system will definitely eliminate the heat and minimize the temperature of inner screen, ensuring the screen normally work for long time.

SPECIFICATIONS

Model	LM250 Plus (Outdoor P2.5)	LM300 Plus (Outdoor P3)
Pixel Pitch (mm)	2.5mm	3.076mm
Brightness（nits）	4500	4500
Refresh Rate（hz）	≥3840	≥3840
Cabinet Size(mm)	640x640x77.5
Cabinet Material	Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡	240/770	240/720
Cabinet Resolution Pixels	256*256	208*208
Pixel Density Pixels(㎡)	160000	105688
Maintenance Type	Rear	Rear
