Outdoor Rental Transparent LED Display P3.9-P7.8, P5.2-P10.4, P7.8-7.8, P10.4-10.4
High Transparency
High Brightness
Great Gray Scale
Light and Slim
7680Hz Refresh rate
IP65
Fast and Easy Installation
Flexible Design

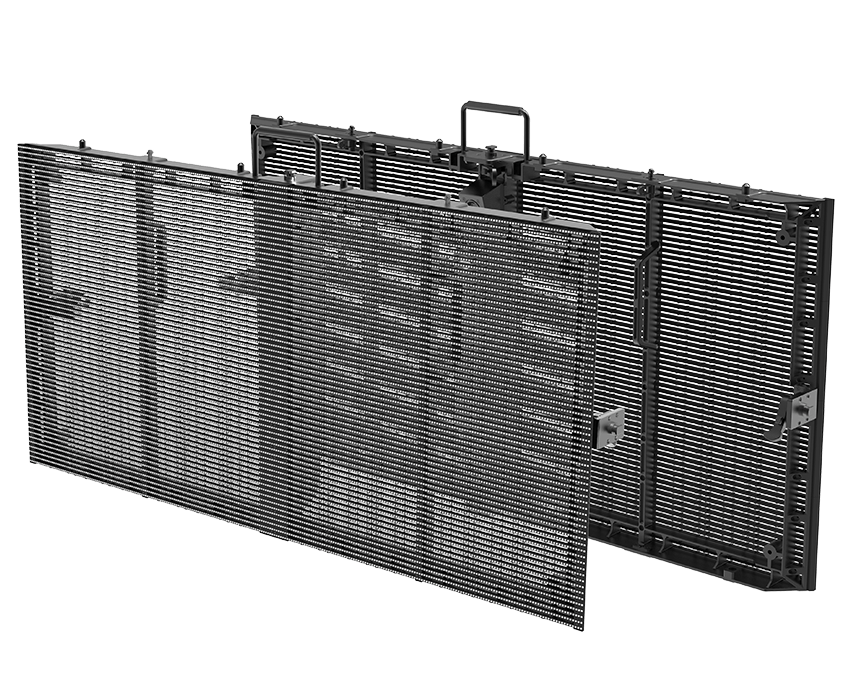

Our product is of die-casting aluminum design. The thickness of the cabinet is only 100mm and the weight is less than 15kgs/sqm which greatly reduce the pressure when being carried and installed.
Hollowed-out cabinet frame. Thinner power box. Sockets are installed at the back of the power box.
Curve connection locks are available to support the curve from -10° to +10°, which allows users to choose the flexible shape of the advertising LED screen. Flat, concave and convex screen create a strong visual impact.
1)Die-casting aluminum cabinet. 2)With ICs on our module distributing in the middle and both sides, the heat dissipation will be more uniform. 3)The cabinet is used with wind-pass design. As a result, even without fans and air conditioners, the screen can still work properly in the high temperature of over 60 degree.
We install the module and power box by captive screws，which will not fall out from the cabinet.
Our rental transparent LED display realizes the connection between the cabinets through connecting pieces and fast locks. And we also design a handle for each cabinet. So that it can be carried to install fast and easily.
All exposed materials are waterproof and UV resistant.
Stacking installation: Ground stacking makes your installation easier and faster during the events. Lifting installation: The hanging bar can hang the cabinets from truss. The light weight of the cabinet will reduce the physical pressure of the frame.
To fit every different scene, our product is made up of superior quality materials with the concise and strong structure. This product is usually used in:
Cinemas; Stages; Advertisements.
| Item | P3.9-P7.8 | P5.2-P10.4 | P7.8-P7.8 | P10.4-10.4 |
|---|---|---|---|---|
| Pixel Pitch | 3.91-7.81mm | 5.2-10.4mm | 7.8-7.8mm | 10.42-10.42mm |
| LED Type | NationStar SMD 1921 | NationStar SMD1921 | NationStar SMD3535 | NationStar SMD3535 |
| Module Resolution | 128dots × 16dots | 96dots × 12dots | 64dots × 16dots | 48dots × 12dots |
| Driving Mode | 1/8scan | 1/4scan | 1/4scan | 1/2scan |
| Module Pixels | 2,048dots | 2,304dots | 1,024dots | 576dots |
| Module Size | 500mm × 125mm | 500mm × 125mm | 500mm × 125mm | 500mm × 125mm |
| Cabinet Size | 1000mm x 500mm x 100mm | 1000mm x 500mm x 100mm | 1000mm x 500mm x 100mm | 1000mm x 500mm x 100mm |
| Cabinet Resolution | 256dots × 64dots | 192dots × 48dots | 128dots × 64dots | 96dots × 48dots |
| Pixel Density | 16,384dots/㎡ | 9,216dots/㎡ | 8,192dots/㎡ | 4,608dots/㎡ |
| Minimum Viewing Distance | ≥4m | ≥5 m | ≥7 m | ≥10 m |
| Transparency | 42% | 50% | 50% | 50% |
| Brightness | 5500nits | 5500nits | 6500nits | 6500nits |
| IP Grade | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz |
| Gray Scale | 16bits | 16bits | 16bits | 16bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 400W/㎡ | 400W/㎡ | 400W/㎡ | 400W/㎡ |
| Average Power Consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Input Voltage | AC240V @ 50Hz / 60Hz | AC240V @ 50Hz / 60Hz | AC240V @ 50Hz / 60Hz | AC240V @ 50Hz / 60Hz |
| Operating Temperature | ﹣30℃～60℃ | ﹣30℃～60℃ | ﹣30℃～60℃ | ﹣30℃～60℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5kg/pannel,15kg/㎡ | 7.5kg/pannel,15kg/㎡ | 7.5kg/pannel,15kg/㎡ | 7.5kg/pannel,15kg/㎡ |
| Operating System | Windows (Win11, Win12, etc.) | Windows (Win12, Win14, etc.) | Windows (Win12, Win11, etc.) | Windows (Win12, Win15, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
