Outdoor Rental LED Display P1.9, P2.6, P3.9, P4.8, P5.9
Great Cabinet Design
Flexible Installation
More Creativity
IP65
High Quality Material
High Quality PCB
High Brightness
Stunning Vision
Outdoor rental LED screen aims at different kinds of outdoor events. The pixel pitches are P2.6, P2.9, P3.9, P4.8, and P5.9. Multiple ways of protection effectively protect the LED module from damage. Fast locks for tighter assemble with no gap. Anti-collision pin corners of the cabinet protect the module and led lamps. Aluminum makes the cabinet waterproof for outdoor applications.

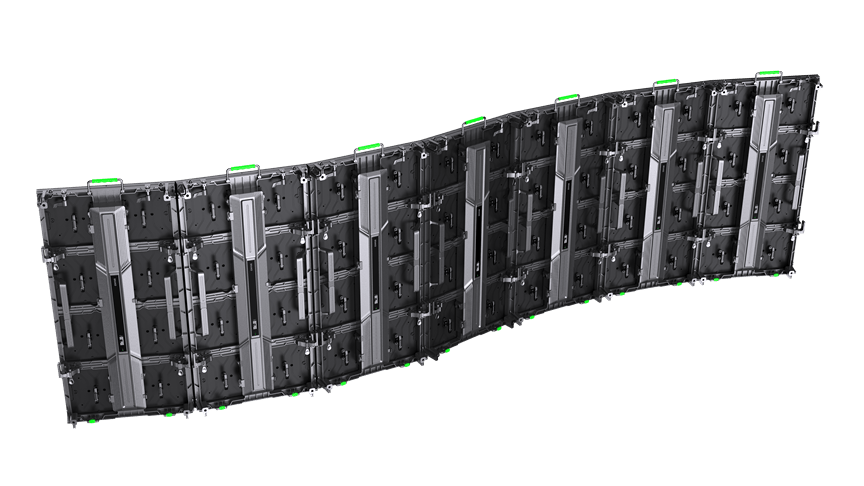

The cabinet material is aluminum, which is stronger than regular steel material. Meanwhile, the cabinet is lighter than the steel cabinet, so installation and transportation are easier. Moreover, we have utilized the high quality PCB in the LED modules. Therefore, the LED screen works more stably than similar outdoor rental products from other factories. There are two choices for the cabinet: 500 x 500mm and 500 x 1,000mm.
To meet the requirements of customers in different application scenarios, 2 cabinet sizes are available. The weight of the cabinet is 7.5kgs for 500mm x 500mm cabinet and 12.5kgs for 500mm x 1,000mm cabinet, which makes installation flexible during the event.
The LED screen can be any shape, for example, round shape, flat shape, which enables more possibilities of your stage design.
The brightness of the outdoor display is 5,000nits ~ 6,500nits, which enables the screen to have very good clarity in direct sunlight. Meanwhile, the cabinet also has very good heat dissipation, so the performance of the LED video display is very reliable.
LED big screen adopts the automatic glue filling machine process, so it will effectively protect it from water and dust. High IP Rating (IP65) ensures great outputs in every condition.
With high quality material and great design, the screen looks extraordinary. Meanwhile, black outdoor LED technology is optional, and the outdoor rental LED screen stands out with peerless visual performance.
To fit every different scene, the outdoor full color LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:
Cinemas; Stages; Advertisements.
| Item | P3.9 | P2.9 | P2.6 |
|---|---|---|---|
| Pixel Pitch | 3.906mm | 2.976mm | 2.604mm |
| LED Type | NationStar SMD1921 | NationStar SMD1921 | NationStar SMD1415 |
| Module Resolution | 64dots × 64dots | 84dots × 84dots | 96dots × 96dots |
| Driving Mode | 1/16scan | 1/21scan | 1/16scan |
| Module Pixels | 4,096dots | 7,056dots | 9,216dots |
| Module Size | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm |
| Cabinet Size | 500mm × 500mm or 500mm × 1,000mm | 500mm × 500mm or 500mm × 1,000mm | 500mm × 500mm or 500mm × 1,000mm |
| Cabinet Resolution | 128dots × 128dots or 128dots × 256dots | 168dots × 168dots or 168dots × 336dots | 192dots × 192dots or 192dots × 384dots |
| Pixel Density | 65,536dots/㎡ | 112,896dots/㎡ | 147,456dots/㎡ |
| Minimum Viewing Distance | ≥3.9 m | ≥2.9 m | ≥2.6m |
| Brightness | ≥6,000nits | ≥5,500nits | ≥5,000nits |
| IP Grade | IP65 | IP65 | IP65 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 16bits～24bits | 16bits～24bits | 16bits～24bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 800W/㎡ | 800W/㎡ | 800W/㎡ |
| Average Power Consumption | 230W/㎡ | 230W/㎡ | 230W/㎡ |
| Input Voltage | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5kg/panel or 12.5kg/panel | 7.5kg/panel or 12.5kg/panel | 7.5kg/panel or 12.5kg/panel |
| Operating System | Windows (Win10,Win11,etc.) | Windows (Win12,Win11,etc.) | Windows (Win13,Win14,etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
