Outdoor LED Display Module

High quality full color SMD outdoor LED display module Including the Data Power Cables and 5 Years Warranty, All LED modules With high brightness and Color uniformity to ensure the LED display has excellent visual effect.

Outdoor LED Screen Panel
LED Lamp

Outdoor LED display module Nationstar Gold Wire LED that have the high reliability and contrast,wide view angle and good consistency which meet the need of high brightness,high refresh rate,high gray scale and keep natural color at one time with best color uniformity.

72 Hours Aging Test

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability the outdoor LED display modules and ensure the LED modules without broken leds.

Driver IC

To achieve the best visual performance of our indoor and outdoor led display,we use the best Driving IC,such as MBI5153, MBI5124, ICN2038, ICN2153 with high refresh rate,high grey level with latest technology.

72 Hours Aging Test

Leeman outdoor LED display Panel has all pixel available from P2mm, P2.5mm, P3mm, P3.076mm, P3.33mm, P4mm, P5mm, P3.91mm, P4.81mm, P5mm, P6mm, P6.67mm, P8mm, P10mm and DIP570 DIP 1R1G1B series such as P8mm, P10mm, P16mm, P20mm, etc, the various size from 320*160mm, 160mm*160mm, 192mm*192mm to 320mm*320mm are available.

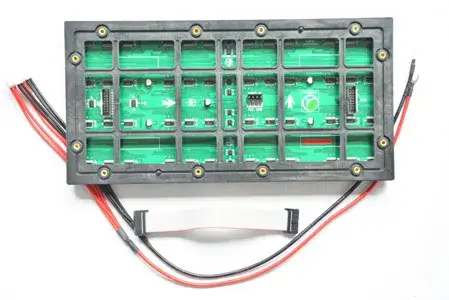

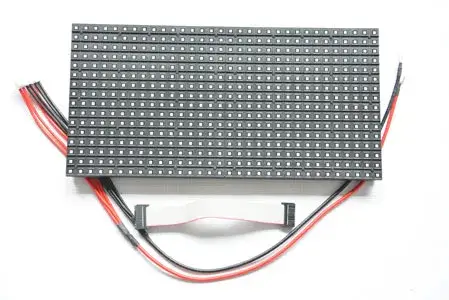

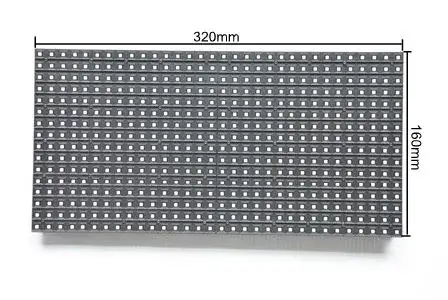

320x160mm Series Indoor LED Module
Outdoor Full Color LED Display Module 320×160 Arduino Raspberry pi
Outdoor Full Color LED Display Module 320×160 Arduino Raspberry pi
Outdoor Full Color LED Display Module 320×160 Arduino Raspberry pi
TypePixel PitchMain Specifications
NationStar LEDModule ResolutionLED TypeBrightness(Nits)Module Size(MM)Driving Mode
320X160 SeriesP3.076mmSMD1415104*52SMD 3in1>5500320*1601/13Scan
P3.33mmSMD192196*48SMD 3in1>6000320*1601/12Scan
P4mmSMD192180*40SMD 3in1>6000320*1601/10Scan
P5mmSMD252564*32SMD 3in1>6500320*1601/8Scan
P6.67mmSMD353548*24SMD 3in1>7000320*1601/6Scan
P8mmSMD353540*20SMD 3in1>7000320*1601/5Scan
P10mmSMD353532*16SMD 3in1>7000320*1601/2Scan
P10mmSMD353532*16SMD 3in1>6000320*1601/4Scan

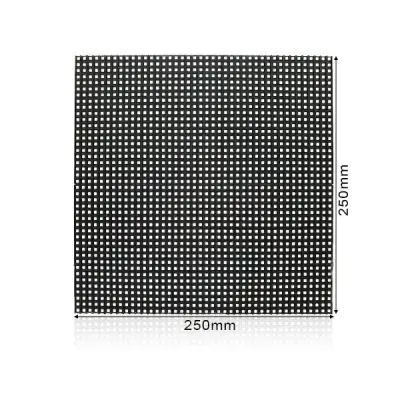

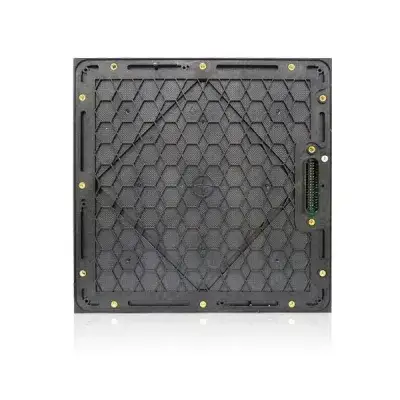

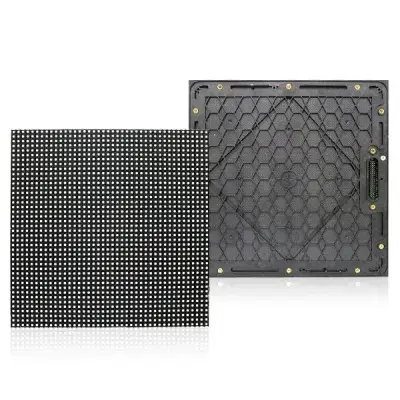

250x250mm Series Indoor LED Module
Outdoor Full Color LED Display Module 320×160 Arduino Raspberry pi
Outdoor Full Color LED Display Module 320×160 Arduino Raspberry pi
Outdoor Full Color LED Display Module 320×160 Arduino Raspberry pi
Pixel PitchNationStar LEDModule ResolutionLED TypeBrightness(Nits)Module Size(MM)Driving Mode
P2.976mmSMD141584*84SMD 3in1>5500250*2501/21Scan
P3.91mmSMD192164*64SMD 3in1>6000250*2501/16Scan
P4.81mmSMD192152*52SMD 3in1>6000250*2501/13Scan

192*192mm Series Outdoor LED Display Panel

Pixel PitchNationStar LEDModule ResolutionLED TypeBrightness(Nits)Module Size(MM)Driving Mode
P1.875mm1515 (Black LED)128*128SMD 3in1800-1200240*2401/32Scan
P2.5mm2121 (Black LED)96*96SMD 3in11000-1500240*2401/32Scan

160*160mm Series LED Outdoor SMD Module

Pixel PitchNationStar LEDModule ResolutionLED TypeBrightness(Nits)Module Size(MM)Driving Mode
P2.5mmSMD141564*64SMD 3in1>5500160*1601/16Scan
P3.33mmSMD192148*48SMD 3in1>6000160*1601/12Scan
P5mmSMD252532*32SMD 3in1>6500160*1601/8Scan
P10mmSMD353516*16SMD 3in1>6800160*1601/2Scan

200*200mm Series Outdoor LED Screen Modul

Pixel PitchNationStar LEDModule ResolutionLED TypeBrightness(Nits)Module Size(MM)Driving Mode
P3.33mmSMD192160*60SMD 3in1>5800200*2001/15Scan
P3.846mmSMD192152*52SMD 3in1>5800200*2001/13Scan
P12.5mmSMD353516*16SMD 3in1>6000200*2001/1Scan

Other Series Outdoor SMD LED Module

Pixel PitchNationStar LEDModule ResolutionLED TypeBrightness(Nits)Module Size(MM)Driving Mode
P4mmSMD252564*32SMD 3in1>6000256*1281/16Scan
P4.8mmSMD192160*60SMD 3in1>6000288*2881/10Scan
SMD2525
P6mmSMD353532*16SMD 3in1>6500192*961/4can
P8mmSMD353532*16SMD 3in1>6500256*1281/4can
P16mmSMD353516*16SMD 3in1>6500256*2561/1can

DIP Series Outdoor LED Module

Pixel PitchCREE LEDModule ResolutionLED TypeBrightness(Nits)Module Size(MM)Driving Mode
P10mmDIP34616*161R1G1B>8000160*1601/4Scan
P10mmDIP346 / DIP57032*161R1G1B / RGB 3in1>9000320*1601/4Scan
P16mmDIP34616*161R1G1B>8500256*2561/1Scan
P20mmDIP34616*81R1G1B>8000320*1601/1Scan

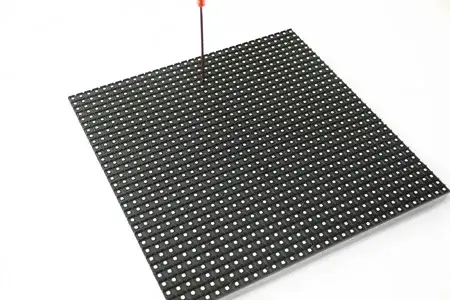

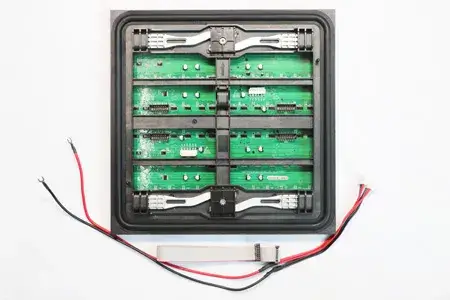

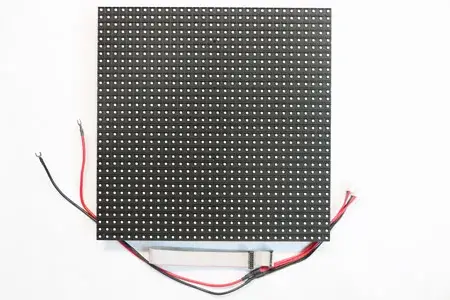

Dual Service (Frontal & Rear) Outdoor LED Module
Outdoor Full Color LED Display Module 320×160 Arduino Raspberry pi
Outdoor Full Color LED Display Module 320×160 Arduino Raspberry pi
Outdoor Full Color LED Display Module 320×160 Arduino Raspberry pi
Pixel PitchNationStar LEDModule ResolutionLED TypeBrightness(Nits)Module Size(MM)Driving Mode
P3.91mmSMD192164*64SMD 3in1>6000250*2501/8Scan
P4.8mmSMD192152*52SMD 3in1>6000250*2501/7Scan
P4mmSMD192180*80SMD 3in1>6000320*3201/10Scan
P5.3mmSMD192160*60SMD 3in1>6000320*3201/8Scan
P6.67mmSMD272748*48SMD 3in1>6800320*3201/6Scan
P8mmSMD353540*40SMD 3in1>7000320*3201/5Scan
P10mmSMD353532*32SMD 3in1>7000320*3201/2Scan
P5.3mmSMD192160*60SMD 3in16000-7000320*3201/6Scan
P6.67mmSMD272748*48SMD 3in16500-7500320*3201/6Scan
P8mmSMD353540*40SMD 3in17000-8000320*3201/5Scan
P10mmSMD353532*32SMD 3in17000-8000320*3201/2Scan
P10mmDIP346 / DIP57032*321R1G1B>9000320*3201/4Scan
P16mmDIP346 / DIP57020*201R1G1B>9000320*3201/1Scan
