90degree Curved led display 500x500
1180-1-1

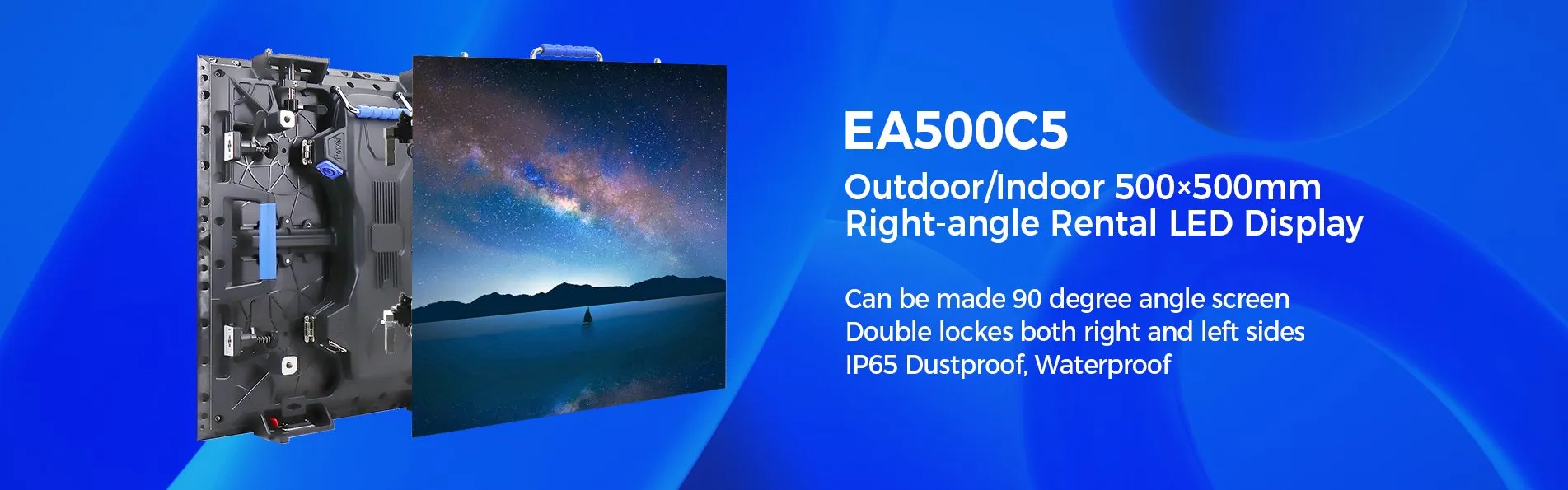

The LM500C5 series is a 45-degree oblique edge LED screen, which can make a 90-degree angle screen.
It has two quick locking devices on the left and right sides, which can guarantee faster assembly speed and better screen flatness.

EA500C5-1

90 degree splicing installation

The two cabinets are directly assembled at a 90-degree angle, which is easy to achieve seamless splicing and high flatness.

500C5-2

Splicing cube LED display

Used for LED displays that require a right angle of 90 degrees, such as cube screens.

500C5-3

Quick Install

LM500C5 series 45 Degree Angle Shaped LED Video Wall screen Two Fast Locks on Left and Right Side,Ensure faster assembly and better screen flatness.

EA500C5-4

High Precision Curve Lock

High Precision Curve Lock design is adopted to solve the problem that the old curved lock is difficult to use before.
Rotational control, more accurate, easy to use and quickly adjust curve degree.

EA500C5-5

Unique Design Bevel Edge LED Display Rental

The power supply and receiving card are installed on the door of the back cover of the cabinet,
which is easy to maintain the module.

EA500C5-6

Lightweight and Thin 90° Right Angle Rental LED Screen Display

LM500C5 series LED display cabinet weighs 7KG/pc, easy to operate: one person to install, disassemble and maintain.

EA500C5-7

IP65 Dustproof And Waterproof

The LM500C5 series outdoor LED display supports IP65 dustproof and waterproof,
it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

EA500C5-8

250x250mm 45 Degree Oblique Edge Modules

500x500mm LED display with standard size panel: 250x250mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

EA500C5-9

Outdoor Right Angle 90 Degree Rental LED Display 500x500 Series Parameter

Pixel Pitch (mm)P3.91P4.81
ModelLM500C5-OP3.91LM500C5-OP4.81
Pixel ConfigurationSMD1921SMD1921
Density (Pixels/㎡)65,53643,264
Module Resolution (Pixel)64x6452x52
Module Size (mm)250x250250x250
Driving Mode (Duty)1/16 1/13
Cabinet Size (mm)500x500500x500
Cabinet Weight (KG)77
Brightness (CD/㎡)≥6,000≥6,000
Viewing Angle (°)140140
Gray Grade (Bits)1414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)720560
Avg. Power Consumption (W/㎡)240190
Frame Frequency (Hz)≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60
Lifetime (Hours)100,000100,000
Protection GradeIP65(front), IP54(rear)IP65(front), IP54(rear)

Indoor 90 Degree Right Angle Rental LED Display 500x500 Series Parameter

Pixel Pitch (mm)P1.95P2.6P2.97P3.91
ModelLM500C5-iP1.95LM500C5-iP2.6LM500C5-iP2.97LM500C5-iP3.91
Pixel ConfigurationSMD1515SMD1515SMD2121SMD2020
Density (Pixels/㎡)262,144147,928112,89665,536
Module Resolution (Pixel)128x12896x9684x8464x64
Module Size (mm)250x250250x250250x250250x250
Driving Mode (Duty) 1/32 1/32 1/281/16
Cabinet Size (mm)500x500500x500500x500500x500
Cabinet Weight (KG)6.56.56.56.5
Brightness (CD/㎡)≥1000≥1200≥1,000≥1,200
Viewing Angle (°)140140140140
Gray Grade (Bits)14141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)480480480576
Avg. Power Consumption (W/㎡)160160160192
Frame Frequency (Hz) ≥60 ≥60≥60≥60
Refresh Frequency (Hz) ≥3,840 ≥3,840≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60-20~+60-20~+60
Lifetime (Hours)100,000100,000100,000100,000
Protection GradeIP31IP31IP31IP31
