Colorlight i5 Receiving Card

Colorlight i5 Receiving Card
1) Support low brightness – high grayscale;
2) Support 32 groups of RGB signal output;
3) Support network cable BER test;
4) Support any scan mode from static to 64 scans.

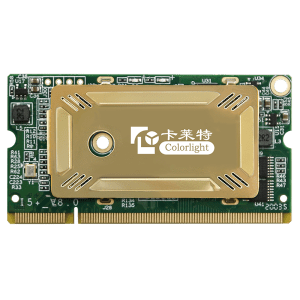

ColorLight i5 receiving card is Colorlight specially introduced for general project, featuring a small size with 68×36mm; It adopts DDR2 SODIMM interface, which can easily integrated into the HUB board or unit plate of led display, loading capacity: 256×512 pixels.

i5 pro controller led has all the functions of the mainstream receiver card. Besides, it also supports 32 groups of RGB signal output, which easily fit with all the mainstream led module, can used video processor for 4k tv.


Colorlight I5 Series LED Receiving Card Features

·Tiny size: 68×36mm, DDR2 SODIMM interface, easy for maintenance

·Supports 32 groups of RGB signal output

·Loading capacity: 256×512 pixels

·High-precision point-by-point calibration in the brightness and chromaticity

·Supports any scan mode from static to 1/64 scan

·Supports wide working voltage of DC 3.8V~5.5V
