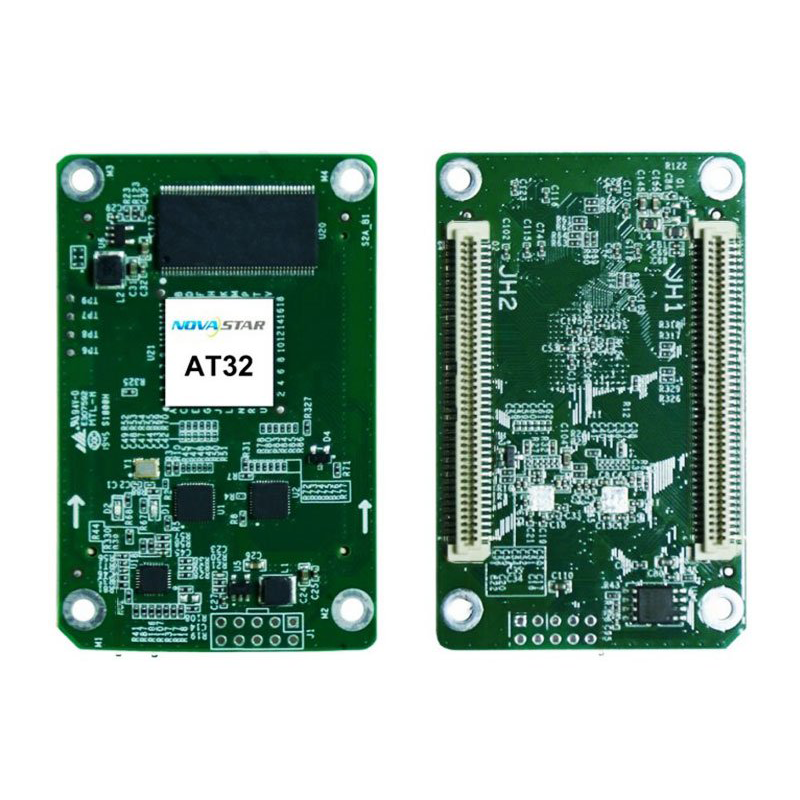

Novastar AT32 LED Display Receiving Cards
Description

Novastar AT32 LED Display Receiving Cards
Loading Capacity: 512×256 Resolution
Input Voltage: DC 3.3 V–5.5 V
Rated Current: 0.5 A
Rated Power Consumption: 2.5 W
Temperature: -20°C–+70°C
Humidity: 10% RH–90% RH, non-condensing
Temperature: -25°C–+125°C
Certifications:RoHS,EMC Class B



The Novastar AT32 receiving card is a general small receiving card developed by NovaStar. A single AT32 loads up to 512×256 pixels.

With various functions such as 12-bit precision pixel level brightness and chroma calibration, 3D function and individual Gamma adjustment for RGB, the AT32 led module controller can greatly improve the display effect and user experience.

The Novastar AT32 receiving card uses high-density connectors for communication to limit effects of dust and vibration, resulting in high stability and reliability.

It supports up to 24 sets of parallel RGB data or 64 sets of serial data. Its reserved pins allow for custom functions of users.

Thanks to its EMC Class A compliant hardware design and with novastar led studio, the AT32 led rcg card ​​has improved electromagnetic compatibility and is suitable to many applications.

NovaStar AT32 LED Display Receiving Cards Features:

Improvements to Display Effect

  • Pixel level brightness and chroma calibration
  • Quick seam correction
  • 3D function

Improvements to Maintainability

  • Smart module (supported by dedicated firmware)
  • Module Flash management
  • One-click application of calibration coefficients saved in module Flash
  • Mapping function
  • Setting of pre-stored image on receiving card
  • Voltage and temperature monitoring
  • Cabinet LCD
  • Bit error rate monitoring
  • Readback of firmware program
  • Readback of configuration parameters

Improvements to Reliability

  • Dual-card backup and status monitoring
  • Status monitoring of dual power supplies
  • Loop backup
  • Dual backup of program
