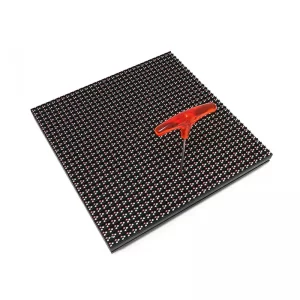

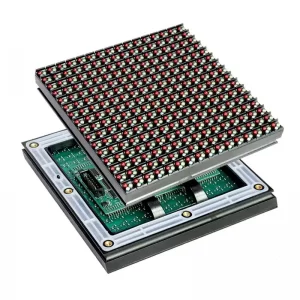

P10 Outdoor DIP 320×160 LED Module 320×320 LED Display Panel 160×160
Description

P10 Outdoor DIP 320×160 LED Module 320×320 DIP LED Display Panel 160×160
P10mm Outdoor led video wall, Waterproof P10mm led display screen
1.DIP LED with Cheap Price and High Brightness.
2.High Refresh Rate and High Grey Grade with Reliable Driving IC.
3.Best Power Supply of Meanwell PSU of CE,UL Approved.
4.Waterproof IP65 LED Cabinet Can be Customized accroding to your LED Display Size.

Application
p10 outdoor led panel widely used in advertising LED displays, stadium perimeter LED screen, mobile led display for mobile media, shopping mall LED billboard for logo showing, bank & stock exchange LED message signs for rates showing, train & bus station, airport, telecommunication LED video wall system forinformation showing and instruction, Stage performances ect.

Feature:
1) Taiwan Epistar LED chip RGB color
2) Fiberglass green enviromental PCB with 18mil thickness copper plating .
3) wide view angle (120 degree) with excellent visibility and good performance.
4) quick and easy assembly and disassembly.
5) High brighness (>8000cd/sqm) and refreshrate.

P10 Outdoor DIP Full Color LED Display Screen 960×960
1.Pixel
LED type: DIP346
Pixel configuration: 1R, 1G, 1B
Wave length(nm): R: 622.5-625,G: 522.5-525,B: 465-467.5
Pixel Pitch(mm): 10
2.Module
Module size(mm): 160(L) * 160(H) * 35(D)
Module resolution (pixels): 16(L) * 16(H)
3.Cabinet
Module quantity in a cabinet: 6(L) * 6(H)
Cabinet size(mm): 960(L)* 960(H)* 175(D)
Cabinet resolution(pixels): 96(L)* 96(H)

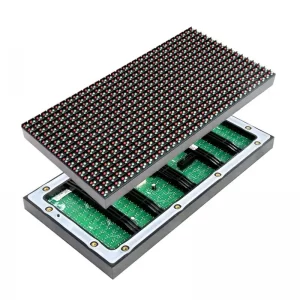

P10 Outdoor DIP 320×160 LED Module

Item Technical Parameters
Cree Nichia Epistar DIP346 LED Lamp Parameters
Item Name LED Type
Red LED DIP 346
Green LED DIP 346
Blue LED DIP 346
LEEMAN LED Display Module Specification
Pixel Pitch P10mm
Pixels Density 10,000 pixels/m2
LED Configuration 1R1G1B
LED Package Mode DIP346
Module Size 320mm x 160mm and 160mm x 160mm and 320mm x 320mm
Module Resolution 32dots(H)*16dots(V) and 16dots(H)*16dots(V)
Module Pixles 512 pixels or 256 pixels
Max Power Consumpion 40W
Module Thickness 28mm
PCB Board 4 Layer PCB Board With 1.6mm
Driving IC MBI5153  ICN2153  ICN2163  FM6363  FM6356
Drive Type Constant drive
Driving Method Scan Mode Dynamic 1/4 Duty constant current
Port Interface Type  HUB75
Module Input Voltage DC 5V
Brightness of White Balance ≥10,000cd/m2
Module Mask Pure Black mask-high contrast screen
LEEMAN LED Display Cabinet Specification
Cabinet Dimension 960mm x 960mm x 100mm (Size can be customized according to your requirements)
Module Quantity 18pcs or 36pcs
Cabinet Resolution 96*96
Cabinet Weight 28kg per cabinet
Cabinet Material Die Casting Aluminum or steel Iron
Best viewing distance 10M~120M
Best viewing angle  160°(H) 160°(V)
Average Power consumption 350W/m2
Max.Power consumption ≤800W/m2
Frame Frequency ≥60Hz
Refresh frequency ≥3840Hz – 7680HZ
Power Supply Mode AC220±10%  50Hz/AC110±10%  60Hz
Temperature storage:-35℃~+85℃
working:-20℃~+50℃
Humidity 10%-95%
IP Grade IP65
Grey scale/colors 256levels of each color(RGB)/16.7M colors
MTBF ≥10,000hours
Screen Lifespan ≥100,000 hours
Screen Plainness <±1mm
Blind Spot Rate <0.0001
CPU Pentium4 or above
Operation system WINDOWS 8/10/IOS/NT/XP IOS Android
Control method Synchronous display with control PC by DVI
Controller System Novastar LED Card, Colorlight LED Card, Linsn LED Card, Huidu LED Card
Display Content HDMI , VGA, DVI, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
Interface Standard Ethernet, HDMI ,DVI, VGA, USB, WIFI, 4G 5G Wireless
Transmission Distance Multi mode fiber <500m, single mode fiber <30km,internet cable
Packaging Method Fly case Flight box Wooden box, Carton box
Power Source Meanwell  G-energy  CZCL  Delta  TDK  Vicor  MEGMEET
PowerCon Neutrick Power connector with cable
EtherCon Neutrick Power connection with cable
Certificate CE, RoHS, FCC, UL, EMC, ETL, ISO, PSE, KC, TUV
Application Outdoor, Indoor Rental or Fixed installation Purpose
Warranty time 5 years warranty time and free lifetime technical support
