IP66 DOOH High Brightness 12000 NITS Outdoor Fixed LED Display Screen
High Brightness 12000 NITS Outdoor Energy Saving LED Screen Front & Rear service DOOH Energy-Saving LED Displays: Efficient & Eco-Friendly Solutions
Leeman Ultra Series DOOH Outdoor Fixed LED Display Screen Solution
Screen Dimension: 960*960*102mm
Pixel Pitch: 4mm, 4.44mm, 5.7mm, 6.67mm, 8mm, 10mm
Features:
12000nits Ultra High Brightness
Aluminum Module Chassis Heat Dissipation
Economic Efficient Energy Saving
Stable and Reliable Performance
Front maintenance & rear service
LESS HEAT & ALWAYS BRIGHT
12,000 NITS, CCES Technology
Using CCES Technology (Common Cathode Energy Saving)
Accurate electricity distribution for RGB LED chips to save energy and lower the power consumption by more than 30%.
Less heat generated from electrical components prolongs the lifespan of the panel.
With a lower temperature inside the panel, electrical components can perform more stable and provide better video quality.
HEAT DISSIPATION
Aluminum module chassis and panel frame accelerates heat dissipation.
White color frame can reflect the sunlight to reduce the heat generated in the panel
Module chassis and power supply unit improves heat dissipation considerably.
| Product Parameters | Unit | LM4.4 | LM5.7 | LM6.6 | LM8 | LM10 |
| Pixel Pitch | mm | 4.44 | 5,71 | 6,67 | 8,00 | 10,00 |
| LED Brand | NationStar SMD1921 | NationStar SMD2727 | NationStar SMD3535 | |||
| Application | Outdoor ultra high brigthness | |||||
| Ingress Protection | IP | IP68 (Front) / IP67 (Back) | ||||
| Brightness | cd/m² | ≤ 12000 Nits @5volts | ||||
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||||
| Viewing Angle (50% brightness) | deg. | 180(+/-90) H | ||||
| Cabinet Size (WxHxD) | mm | 960 x 960 x 101 / 960 x 640 x 101 / 960 x 1280 x 101 / 1440 x 960 x 101 / 1440 x 640 x 101 / 1440 x 1280 x 101 / 1280 x 960 x 96 | ||||
| Display area (WxH) | mm | 960 x 960 / 960 x 640 / 960 x 1280 / 1440 x 960 / 1440 x 640 / 1440 x 1280 / 1280 x 960 | ||||
| Module Size (WxHxD) | mm | 480 x 320 x 26 / 320 x 320 x 26 (caisson 1280 x 960) | ||||
| Pixel Matrix Per Cabinet (WxH) | px | 216 x 216 / 216 x 144 / 216 x 288 / | 168 x 168 / 168 x 112 / 168 x 224 / | 144 x 144 / 144 x 96 / 144 x 192 / | 120 x 120 / 120 x 80 / 120 x 160 / | 96 x 96 / 96 x 64 / 96 x 128 / |
| 324 x 216 / 324 x 144 / 324 x 288 / 288 x 216 | 252 x 168 / 252 x 112 / 252 x 224 / 224 x 168 | 216 x 144 / 216 x 96 / 216 x 192 / 192 x 144 | 180 x 120 / 180 x 80 / 180 x 160 / 160 x 120 | 144 x 96 / 144 x 64 / 144 x 128 / 128 x 96 | ||
| Pixel Matrix Per Module (WxH) | px | 108 x 72 / 72 x 72 | 84 x 56 / 56 x 56 | 72 x 48 / 48 x 48 | 60 x 40 / 40 x 40 | 48 x 32 / 32 x 32 |
| Pixel Density | px/m² | 50625 | 30625 | 22500 | 15625 | 10000 |
| Weight of a cabinet | kg | 27 (960 x 960) / 19 (960 x 640) / 38 (960 x 1280) / 41 (1440 x 960) / 27.3 (1440 x 640) / 56.5 (1440 x 1280) / 38 (1280 x 960) | ||||
| Cabinet Material | Die-casting aluminum | |||||
| Maintenance Mode | Front & back service | |||||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders | |||||
| Contrast Ratio | High | |||||
| Grey scale (linear) | bit | 16 | ||||
| Brightness control | bit | 16 | ||||
| Processing depth | bit | 16 | ||||
| Color | 281 Trillions | |||||
| Display Refresh Rate | Hz | 3840 | ||||
| Operation Power | V | AC110-230V | ||||
| Max. Power Consumption | W/m² | 550 | ||||
| Average Power Consumption | W/m² | 200 | ||||
| Control Mode | Synchronization | |||||
| Video Frame Rate | Hz | 50/60Hz | ||||
| Input Types Supported | DVI / SDI / HDMI / VGA / USB / LAN / WIFI / 4G | |||||
| 3D ready (optional) | Yes | |||||
| Calibration | Yes | |||||
| Lifetime (50% brightness) | h | 50000 | ||||
| Operating Humidity Range | 10-95% | |||||
| Operating Temperature Range | – 40°C / + 65°C | |||||
| Fire resistance rating | 5VB | |||||
| Certification | UL / EMC CLASS B / CE / ETL / CCC / ROHS | |||||
| Available options | Curve, hanging bars, corner cabinets | |||||
| Compatibility | Different sizes compatible with each other | |||||
P4 P4.44 P5 P5.7 P6.67 P8 P10 Outdoor Energy-saving LED Display Series
12000nits Ultra High Brightness
Aluminum Module Chassis Heat Dissipation
Economic Efficient
Energy Saving
Stable and Reliable Performance
Total front & rear service
DOOH Series – Leeman Outdoor Fixed LED Screen
Aluminum module chassis and panel frame accelerates heat dissipation. Air convection design helps air circulation inside the panel and keeps the balance of the air pressure inside the PSU. Heat sink design for module chassis and power supply unit improves heat dissipation considerably. White color frame can reflect the sunlight to reduce the heat generated in the panel.

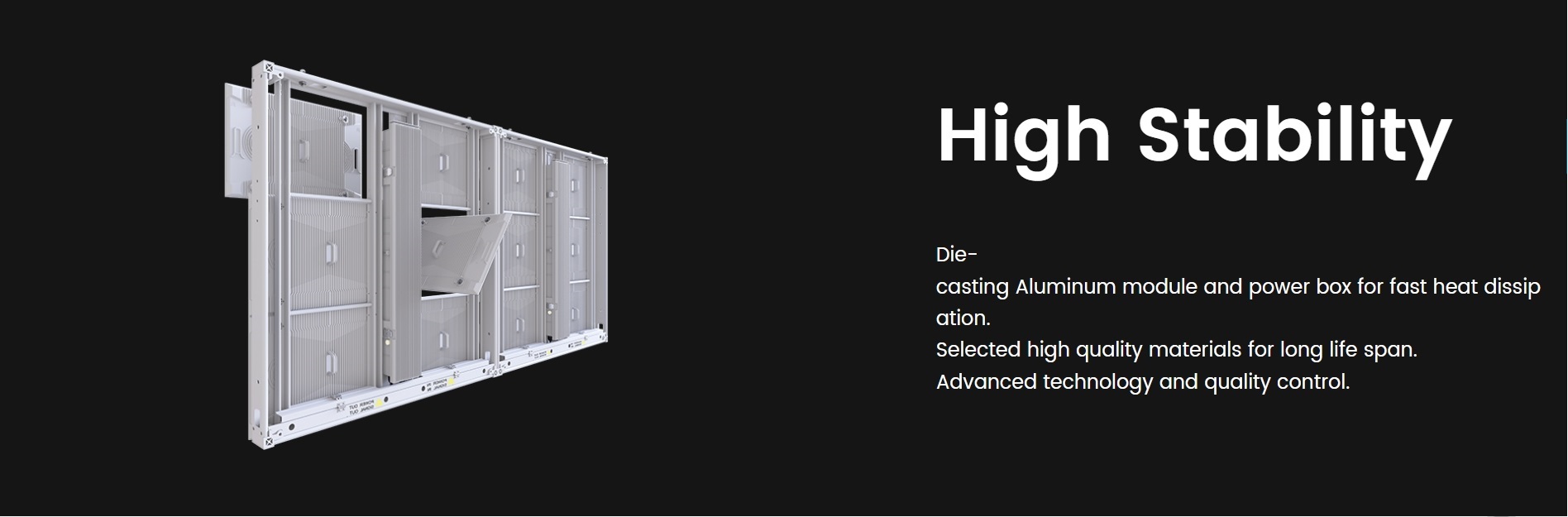

All Aluminum Module Design Exceptional Engineering – Heat Dissipation
Aluminum module chassis and panel frame accelerates heat dissipation.
Air convection design helps air circulation inside the panel and keeps the balance of the air pressure inside the PSU.
Heat sink design for module chassis and power supply unit improves heat dissipation considerably.
White color frame can reflect the sunlight to reduce the heat generated in the panel.

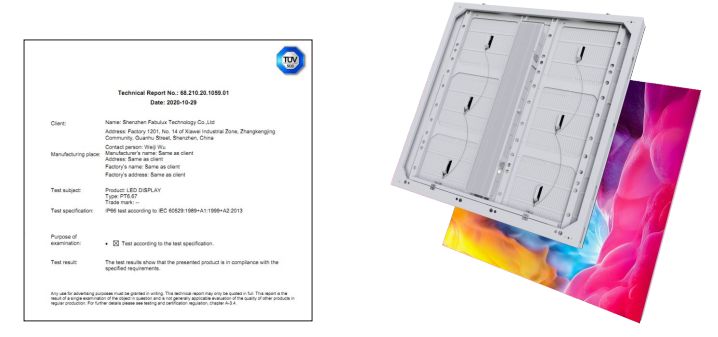

Water-proof Technology
Aluminum module chassis ensures the water proof ability of the module.
Water proof connectors are used for the hard connection between modules and panel frame.
Outdoor–rated power and data cables are covered at the bottom of the panel to provide stable transmission of electricity and data.
Drain hole is designed at the bottom of the panel to prevent ponding.
