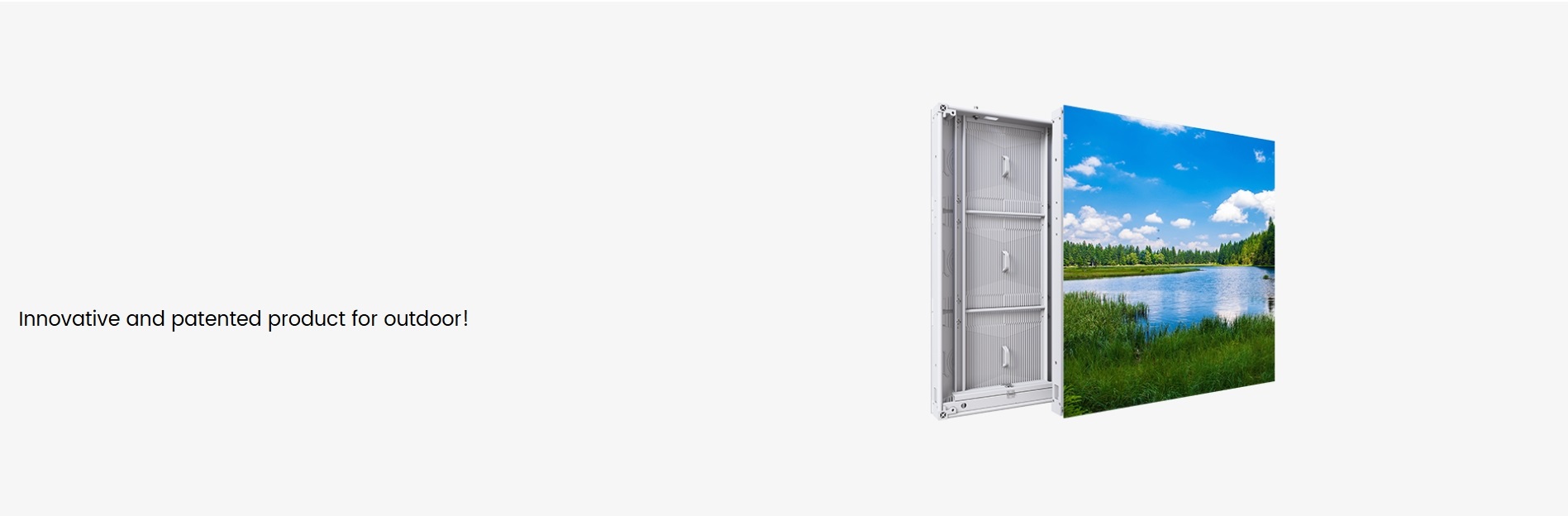

10000nits Ultra High Brightness 960series Outdoor Fixed LED Display Screen DOOH Solution
10000nits Ultra High Brightness 960series Outdoor Fixed LED Display Screen DOOH Solution
Dimension: 960*960*102mm
Pixel Pitch Outdoor: 4.4mm, 5.7mm, 6.67mm, 8mm, 10mm
Applications: Digital Signage System, Chain store, Street furniture, LED Billboard, Shopping Mall, etc.
Key Features:
● 10000nits Ultra High Brightness
● Aluminum Module Chassis Heat Dissipation
● Economic Efficient
● Energy Saving
● Stable and Reliable Performance
● Total front & rear service
| Model name | P4.4 | P5.7 | P6.67 | P8 | P10 |
| Pixel Pitch (mm) | 4.4 | 5.7 | 6.67 | 8 | 10 |
| Pixel Density (pc) | 216×216 | 168*168 | 144*144 | 120*120 | 96*96 |
| LED sealing Type | NationStar Gold Wire SMD1921 | NationStar Gold Wire SMD2727 | NationStar Gold Wire SMD2727 | NationStar Gold Wire SMD2727 | NationStar Gold Wire SMD3535 |
| Module Size (mm * mm) | 480*320 | 480*320 | 480*320 | 480*320 | 480*320 |
| Module Resolution (PX* PX) | 108*72 | 84*56 | 72*48 | 60*40 | 48*32 |
| Brightness (cd/m2) | 5000nits – 7000nits | 6000nits – 10000nits | 6000nits – 10000nits | 6000nits – 10000nits | 6000nits – 10000nits |
| Grey Scale（bit） | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 |
| Refresh Rate (Hz) | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Maximum Cabinet Power Consumption (W) | 550 | 550 | 550 | 550 | 600 |
| Average Cabinet Power Consumption (W) | 300 | 300 | 300 | 300 | 300 |
| Cabinet Size (mm * mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
| Cabinet Weight (Kg) | 25KG | 25KG | 25KG | 25KG | 25KG |
| Cabinet Thickness(mm) | 87 | 87 | 87 | 87 | 87 |
| Horizontal Viewing Angle (Deg) | 160 | 160 | 160 | 160 | 160 |
| Vertical Viewing Angle (Deg) | 140 | 140 | 140 | 140 | 140 |
| Input Voltage (V) | 110-220V/200-240V | 110-220V/200-240V | 110-220V/200-240V | 110-220V/200-240V | 110-220V/200-240V |
| Working Temperature (℃) | -40~ +60 | -40~ +60 | -40~ +60 | -40~ +60 | -40~ +60 |
| Working humidity（RH） | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Storage temperature range | -50~ +80 | -50~ +80 | -50~ +80 | -50~ +80 | -50~ +80 |
| Operation humidity (RH): | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Waterproof Level | IP66 | IP66 | IP66 | IP66 | IP66 |
| working life | 50000h | 50000h | 50000h | 50000h | 50000h |
| Working Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Installation Method | Fixed Installation | Fixed Installation | Fixed Installation | Fixed Installation | Fixed Installation |
| Maintenance | Front & Rear Access | Front & Rear Access | Front & Rear Access | Front & Rear Access | Front & Rear Access |
