Front Service LED Display Module | Front Maintenance LED Display Panel
| Dual Service (Front & Rear) Outdoor LED Module 320×320 | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P4mm | SMD1921 | 320*320 | 80*80 | 1/10 | 3840 | 5500 |
| P5mm | SMD1921 | 320*320 | 64*64 | 1/8 | 3840 | 5500 |
| P5.33mm | SMD1921 | 320*320 | 60*60 | 1/8 | 3840 | 5500 |
| P6.67mm | SMD2727 | 320*320 | 48*48 | 1/6 | 3840 | 6000 |
| P8mm | SMD3535 | 320*320 | 40*40 | 1/5 | 3840 | 6500 |
| P10mm | SMD3535 | 320*320 | 32*32 | 1/2 | 3840 | 7000 |
| P10mm | DIP346 | 320*320 | 32*32 | 1/4 | 3840 | 12000 |
| P16mm | DIP346 | 320*320 | 20*20 | 1/1 | 3840 | 10000 |
| Dual Service (Front & Rear) Outdoor LED Module 250×250 | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P3.12mm | SMD1415 | 250*250 | 80*80 | 1/10 | 3840 | 6500 |
| P3.91mm | SMD1921 | 250*250 | 64*64 | 1/8 | 3840 | 6000 |
| P4.81mm | SMD1921 | 250*250 | 52*52 | 1/6 | 3840 | 5500 |
| P5.95mm | SMD2727 | 250*250 | 42*42 | 1/7 | 3840 | 6000 |
| P6.94mm | SMD2727 | 250*250 | 36*36 | 1/6 | 3840 | 6000 |
| P8.33mm | SMD3535 | 250*250 | 30*30 | 1/5 | 3840 | 6500 |
| P10.41mm | SMD3535 | 250*250 | 24*24 | 1/2 | 3840 | 7000 |
| Dual Service (Front & Rear) Outdoor LED Module 320×160 | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P3.33mm | SMD1415 | 320*160 | 96*48 | 1/12 | 3840 | 5500 |
| P4mm | SMD1921 | 320*160 | 80*40 | 1/10 | 3840 | 5500 |
| P5mm | SMD1921 | 320*160 | 64*32 | 1/8 | 3840 | 5500 |
| P6.67mm | SMD2727 | 320*160 | 48*24 | 1/6 | 3840 | 5500 |
| P8mm | SMD2727 | 320*160 | 40*20 | 1/5 | 3840 | 6000 |
| P10mm | SMD2727 | 320*160 | 32*16 | 1/2 | 3840 | 6500 |

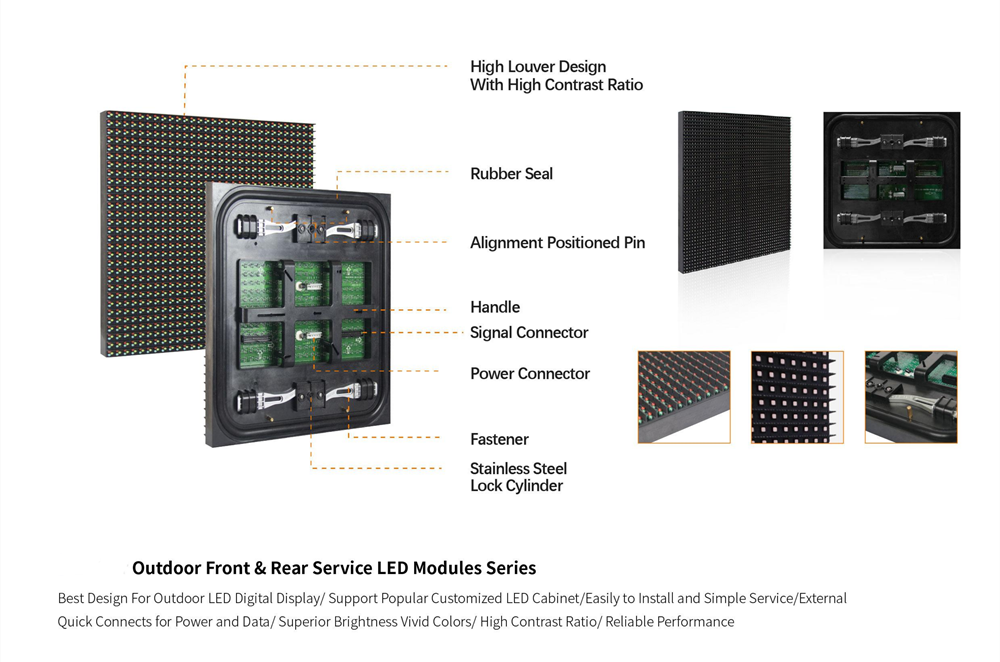

Front And Rear Service LED Display Module
Dual service LED Screen module of front and rear design can meet the requirements of IP68 protection level.
It is a effective full-color SMD 3 in 1 LED sign module with high quality and high brightness.
320mm*320mm and 250mm*250mm is available and 2 years warranty is provided.
LED Chips
We choose high quality LED chips such as Nationstar, Kinglight for outdoor front&rear service LED modules, ensuring high refresh rate with the best color uniformity.
SMD 3 in 1 LED
Adopting high reliable SMD1921, SMD2727 and SMD3535 to ensure outdoor front&rear access LED modules perform high brightness from 5500 – 7500 CD/m2.
Easy Assembling
The front and rear service LED module can be replaced or taken out from the front side or real side easily by only one person. No screws design, so it is easier to mount the modules on the cabinet quickly.
Dual-mode Maintenancm
Dual-mode maintenance (Front & Rear) outdoor LED display panel , saving the maintenance space and being compatible with hard installation conditions.
