MIP LED Display means that MIP Stands for “Micro LED in Package”, it is a new packaging technology based on NationStar Mini LED or Micro LED Panels Like P0.78125, P0.9375, P1.25, and P1.5625, utilize a 16:9 ratio LED cabinet size of 600mmx337.5mm.
- MIP LED Display technology parameters
| Series | MIP (Micro LED In Package) | |
| Pixel pitch（mm） | 0.93 | 1 .25 |
| Cabinet size(mm) | 600*337.5 | 600*337.5 |
| Module size（mm） | 168.75*150 | 168.75*150 |
| Contrast | 25000: 1 | 20000:1 |
| luminance | 900cd/m² | 800cd/m² |
| Colour | 6500K/9000K | 6500K/9000K |
| Temperature | ||
| Scanning mode | 1/30 scan | 1/27 scan |
| Power dissipation(㎡) | 250W ±10% | 250W ±10% |
| Cabinet material | Die cast aluminum | Aluminium alloy |
| Cabinet weight | 4.4±10% Kg | 5±10% Kg |
| Cabinet resolution | 640*360 | 480*270 |
| Number of modules/Cabinet | 8 piece | |
| Working environment | Temperature:-30°C~+45C; humidness | |
| 15%~90%RH | ||
| Reliability experiment | +85°C(85%RH)/-20C | |
| Input video signal interfac | DVI/HDMI/DP/VGA/LAN/USB | |
| Display system | NovaStar NovaLCT / Colorlight LEDvision | |
What is MiP LED Panels?

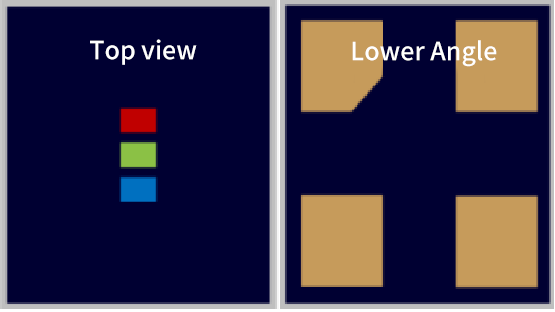

MIP stands for Micro LED in Package, which is a new LED packaging technology based on Mini Micro LED. NationStar MiP technology dices Mini/Micro LED Modules into small pieces and packages each piece independently. It increases yield and prominently lowers cost for LED display manufacturing.
What is the MIP LED Screen?
MIP (Micro LED in Package) is a new type of Micro packaging technology, with self-developed ink multi-layer packaging process, with ultra-high contrast, ink consistency, high reliability, surface light source, no glare, cold screen more energy saving, LED Lights mixing, high uniformity, no Mura effect, more delicate picturequality.
