P1.25 P1.53 P1.86 P2 P2.5 Outdoor LED Display Module 320X160
| Outdoor LED Display Module 320x160mm Series | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P1.25mm | SMD1010 | 320*160 | 256*128 | 1/64 | 3840 | 4000 |
| P1.53mm | SMD1010 | 320*160 | 208*104 | 1/52 | 3840 | 4000 |
| P1.86mm | SMD1010 | 320*160 | 172*86 | 1/29 | 3840 | 4000 |
| P2mm | SMD1010 | 320*160 | 160*80 | 1/20 | 3840 | 4000 |
| P2.5mm | SMD1415 | 320*160 | 128*64 | 1/16 | 3840 | 5000 |
| P3.076mm | SMD1415 | 320*160 | 104*52 | 1/13 | 3840 | 5000 |
| P4mm | SMD1921 | 320*160 | 80*40 | 1/10 | 3840 | 5500 |
| P5mm | SMD2727 | 320*160 | 64*32 | 1/8 | 3840 | 6000 |
| P5mm | SMD1921 | 320*160 | 64*32 | 1/8 | 3840 | 5500 |
| P6.67mm | SMD3535 | 320*160 | 48*24 | 1/6 | 3840 | 6500 |
| P8mm | SMD3535 | 320*160 | 40*20 | 1/5 | 3840 | 6500 |
| P10mm | SMD3535 | 320*160 | 32*16 | 1/2 | 3840 | 7000 |
| P10mm | DIP346 1R1G1B | 320*160 | 32*16 | 1/4 | 3840 | 12000 |
| Flexible Mask Outdoor LED Display Module 320×160 | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P5mm | SMD1921 | 320*160 | 64*32 | 1/8 | 3840 | 6000 |
| P5mm | SMD2727 | 320*160 | 64*32 | 1/8 | 3840 | 6000 |
| P6.67mm | SMD3535 | 320*160 | 48*24 | 1/6 | 3840 | 6000 |
| P8mm | SMD3535 | 320*160 | 40*20 | 1/5 | 3840 | 6000 |
| P10mm | SMD3535 | 320*160 | 32*16 | 1/2 | 3840 | 6500 |
| Outdoor LED Display Module 80x160mm Series | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P4mm | SMD1921 | 80*160 | 20*40 | 1/10 | 3840 | 5500 |
| P5mm | SMD1921 | 80*160 | 16*32 | 1/8 | 3840 | 5500 |
| P6.67mm | SMD3535 | 80*160 | 12*24 | 1/6 | 3840 | 5500 |
| P8mm | SMD3535 | 80*160 | 10*20 | 1/5 | 3840 | 5500 |
| P10mm | SMD3535 | 80*160 | 8*16 | 1/2 | 3840 | 5500 |
| Cable Connection Outdoor LED Display Module 250×250 | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P2.6mm | SMD1415 | 250*250 | 96*96 | 1/24 | 3840-7680 | 4800 |
| P2.97mm | SMD1415 | 250*250 | 84*84 | 1/21 | 3840-7680 | 4800 |
| P3.91mm | SMD1921 | 250*250 | 64*64 | 1/16 | 3840-7680 | 5000 |
| P3.91mm | SMD1921 | 250*250 | 64*64 | 1/8 | 3840-7680 | 5500 |
| P3.91mm | SMD1921(black) | 250*250 | 64*64 | 1/8 | 3840-7680 | 6000 |
| Hub Connection Outdoor LED Display Module 250×250 | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P2.6mm | SMD1415 | 250*250 | 96*96 | 1/24 | 3840-7680 | 4800 |
| P2.97mm | SMD1415 | 250*250 | 84*84 | 1/21 | 3840-7680 | 4800 |
| P3.91mm | SMD1921 | 250*250 | 64*64 | 1/16 | 3840-7680 | 5000 |
| P3.91mm | SMD1921 | 250*250 | 64*64 | 1/8 | 3840-7680 | 5500 |
| P3.91mm | SMD1921(black) | 250*250 | 64*64 | 1/8 | 3840-7680 | 6000 |
| Flexible Hub Connection Outdoor LED Display Module 250×250 | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P2.6mm | SMD1415 | 250*250 | 96*96 | 1/24 | 3840 | 4800 |
| P2.97mm | SMD1415 | 250*250 | 84*84 | 1/21 | 3840 | 4800 |
| P3.91mm | SMD1921 | 250*250 | 64*64 | 1/16 | 3840 | 5500 |
| Hub Connection Outdoor LED Display Module 288×288 | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P3.79mm | SMD1921 | 288*288 | 76*76 | 1/19 | 3840-7680 | 5000 |
| P4.81mm | SMD1921 | 288*288 | 60*60 | 1/10 | 3840-7680 | 5000 |
| Outdoor LED Screen Panel 192x192mm | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P3mm | SMD1415 | 192*192 | 64*64 | 1/16 | 3840 | 5500 |
| P6mm | SMD2727 | 192*192 | 32*32 | 1/6 | 3840 | 5500 |
| P6mm | SMD3535 | 192*192 | 32*32 | 1/8 | 3840 | 6000 |
| Other Series Outdoor LED Screen Module | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P2.5mm | SMD1415 | 160*160 | 64*64 | 1/16 | 3840 | 5000 |
| P4mm | SMD1921 | 256*128 | 64*32 | 1/8 | 3840 | 6000 |
| P8mm | SMD3535 | 256*128 | 32*16 | 1/4 | 3840 | 6000 |
| P10mm | DIP346 1R1G1B | 160*160 | 16*16 | 1/4 | 1920 | 10000 |
| P16mm | DIP346 1R1G1B | 256*256 | 16*16 | 1/1 | 1920 | 10000 |
| Energy-saving Outdoor LED Display Module 320×160 | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P2.5mm | SMD1415 | 320*160 | 128*64 | 1/16 | 3840 | 5000 |
| P3.076mm | SMD1415 | 320*160 | 104*52 | 1/13 | 3840 | 5000 |
| P4mm | SMD1921 | 320*160 | 80*40 | 1/10 | 3840 | 5500 |
| P5mm | SMD1921 | 320*160 | 64*32 | 1/8 | 3840 | 5500 |
| P6.67mm | SMD3535 | 320*160 | 48*24 | 1/6 | 3840 | 6000 |
| P8mm | SMD3535 | 320*160 | 40*20 | 1/5 | 3840 | 6500 |
| P10mm | SMD3535 | 320*160 | 32*16 | 1/2 | 3840 | 7000 |
| Energy-saving Outdoor LED Display Module 80x160mm | ||||||
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P4mm | SMD1921 | 80*160 | 20*40 | 1/10 | 3840 | 6000 |
| P5mm | SMD1921 | 80*160 | 16*32 | 1/8 | 3840 | 6000 |
| P6.67mm | SMD3535 | 80*160 | 12*24 | 1/6 | 3840 | 6500 |
| P8mm | SMD3535 | 80*160 | 10*20 | 1/5 | 3840 | 6500 |
| P10mm | SMD3535 | 80*160 | 8*16 | 1/2 | 3840 | 7500 |

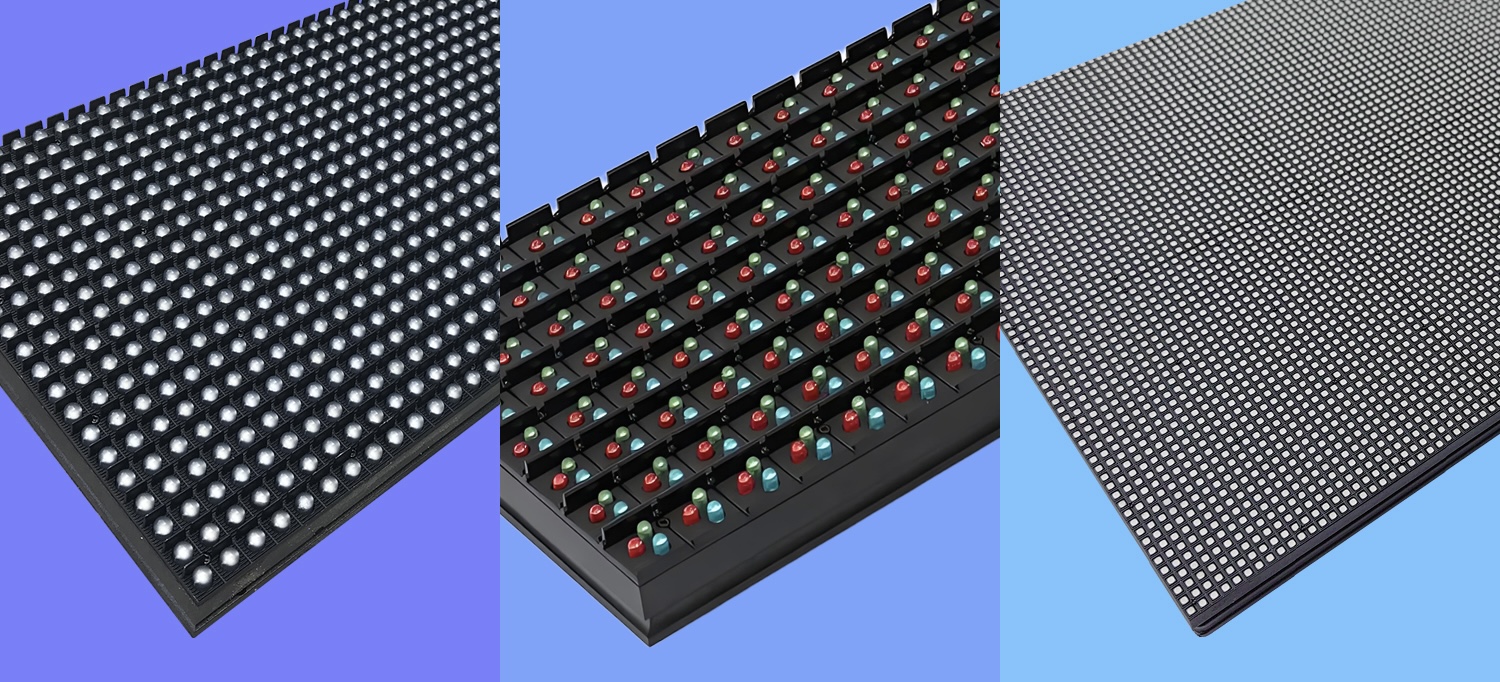

Outdoor LED Display Module
High quality full color SMD outdoor LED display module Including the Data Power Cables and 2 Years Warranty,
All LED modules With high brightness and Color uniformity to ensure the LED display has excellent visual effect.
Outdoor LED Screen Panel LED Chips
We choose high-quality LED chips such as Nationstar, Kinglight for outdoor LED display modules. Furthermore, high brightness and IP65 waterproof protection can be provided.
Driver IC
To achieve the best visual performance of outdoor LED display, we use the best Driving IC, such as MIB5153, MBI5124, MBI5264, ICN2037, ICN2153, ICN2038S, ICN2163, ICDN2165, CFD555 CFD325 with high refresh rate and high grey level with the latest technologies.
72+ Hours Aging Tests
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability the outdoor LED display modules and ensure the LED modules without broken leds.
Various Pixel Pitch Avaliable
All pixel available including P2.5mm,P3mm, P4mm, P5mm, P3.91mm, P4.81mm, P5mm, P6mm, P6.67mm, P8mm, P10mm, and DIP 1R1G1B series such as P10mm, P16mm, P20mm, etc. Various sizes 320*160mm, 160mm*160mm, 192mm*192mm,250mmx250mm and 256mm*128mm are in stock.
